EL3H7(B)(TA)-G Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EL3H7(B)(TA)-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Isolation: | 3750Vrms | Current Transfer Ratio (Min): | 130% @ 5mA |
|---|---|---|---|
| Current Transfer Ratio (Max): | 260% @ 5mA | Rise / Fall Time (Typ): | 5µs, 3µs |
| Input Type: | DC | Output Type: | Transistor |
| Voltage - Output (Max): | 80V | Current - Output / Channel: | 50mA |
Product Description

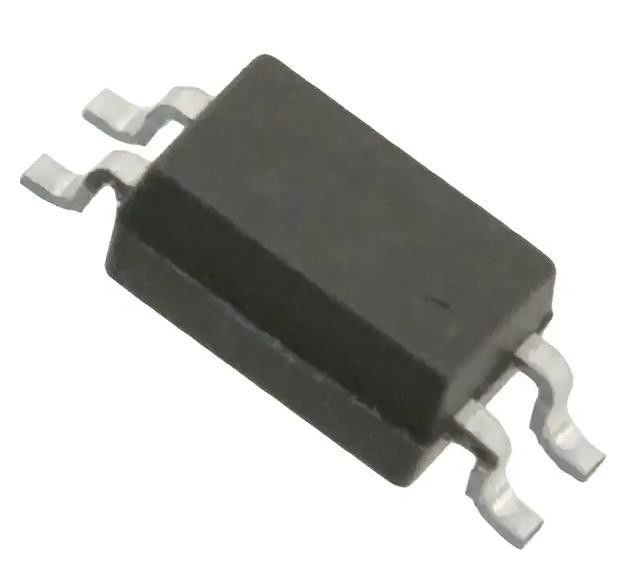

EL3H7(B)(TA)-G Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
Specifications of DS64MB201SQ
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | Everlight Electronics Co Ltd |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 130% @ 5mA |
| Current Transfer Ratio (Max) | 260% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 5µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SSOP |
| Base Product Number | EL3H7 |
Features of DS64MB201SQ
• Halogens free (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
• Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V) (CTR: 40~320% at IF =10mA, VCE =5V)
• High isolation voltage between input and output (Viso=3750 V rms )
• Compact 4 Pin SSOP with a 2.0 mm profile
• Compliance with EU REACH
• Pb free and RoHS compliant.
• UL and cUL approved(No. E214129)
• VDE approved (No. 132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved
• FIMKO approved
Applications of DS64MB201SQ
• DC-DC Converters
• Programmable controllers
• Telecommunication equipments
• Signal transmission between circuits of different potentials and impedances
Environmental & Export Classifications of DS64MB201SQ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
