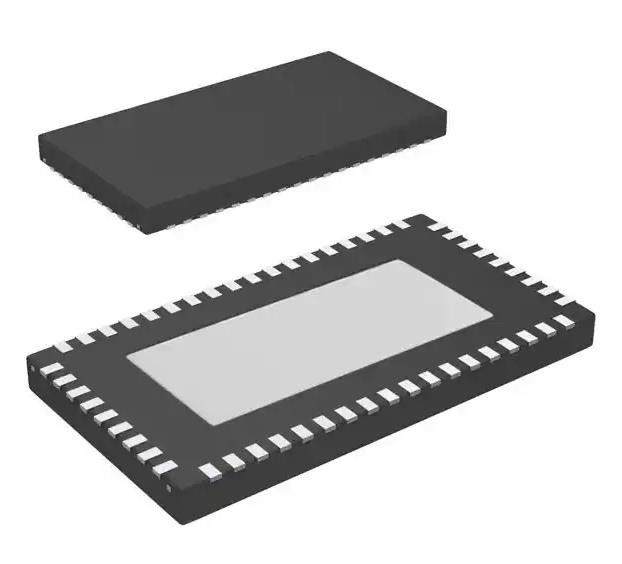

DS64MB201SQ Networking Telecommunications Switch IC 3 Channel 54-WQFN (10x5.5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS64MB201SQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Equalization, RXAUI, SATA, XAUI | Applications: | Networking, Telecommunications |
|---|---|---|---|
| Multiplexer/Demultiplexer Circuit: | 2:1, 1:2 | Switch Circuit: | - |
| Number Of Channels: | 3 | Voltage - Supply, Single (V+): | 2.38V ~ 2.63V |
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case: | 54-WFQFN Exposed Pad |
Product Description
DS64MB201SQ Networking Telecommunications Switch IC 3 Channel 54-WQFN (10x5.5)
Specifications of DS64MB201SQ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches - Special Purpose | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | Networking, Telecommunications |
| Multiplexer/Demultiplexer Circuit | 2:1, 1:2 |
| Switch Circuit | - |
| Number of Channels | 3 |
| On-State Resistance (Max) | - |
| Voltage - Supply, Single (V+) | 2.38V ~ 2.63V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | - |
| Features | Equalization, RXAUI, SATA, XAUI |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 54-WFQFN Exposed Pad |
| Supplier Device Package | 54-WQFN (10x5.5) |
| Base Product Number | DS64MB201 |
Features of DS64MB201SQ
* Up to 6.4 Gbps dual lane 2:1 mux, 1:2 switchor fan-out
* Adjustable receive equalization up to +33 dBgain
* Adjustable transmit de-emphasis up to -12 dB
* Adjustable transmit VOD
* <0.25 Ul of residual DJ at 6.4 Gbps with 40FR4 trace
* SATA/SAS: OOB signal pass-through
* Adjustable electrical IDLE detect threshold
* Low power
* Signal conditioning programmable via pinselection or SMBus interface
* Single 2.5V supply operation
* >6 kV HBM ESD Rating
* 3.3V tolerant SMBus interface
* High speed signal flow-thru pinout package:54-pin WQFN (10 mm x 5.5 mm)
Applications of DS64MB201SQ
• SAS and SATA (1.5, 3.0 and 6 Gbps)
• XAUI (3.125 Gbps), RXAUI (6.25 Gbps)
• sRIO – Serial Rapid I/O
• Fibre Channel (4.25 Gbps)
• 10GBase-CX4, InfiniBand (SDR & DDR)
• FR-4 backplane traces
Environmental & Export Classifications of DS64MB201SQ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
