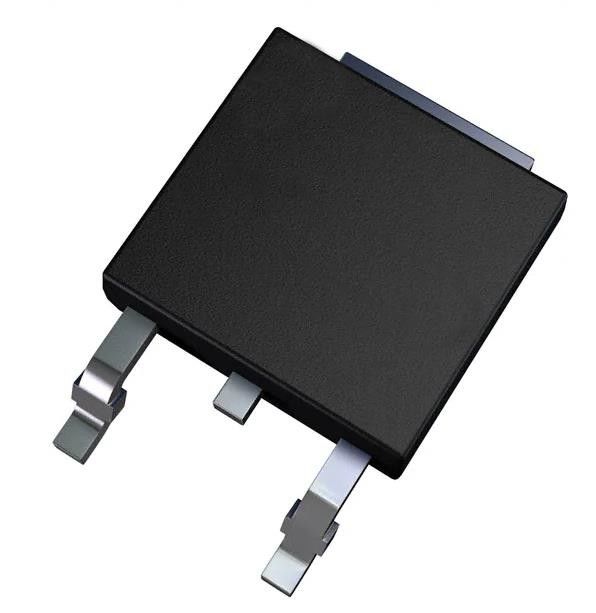

LF120ABDT-TR Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DPAK
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LF120ABDT-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 16V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 12 V | Voltage Dropout (Max): | 0.7V @ 500mA |
| Current - Output: | 500mA | Current - Quiescent (Iq): | 1.5 MA |
| Current - Supply (Max): | 12 MA | PSRR: | 69dB ~ 54dB (120Hz ~ 10kHz) |
Product Description
LF120ABDT-TR Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DPAK
Specifications of LF120ABDT-TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 1.5 mA |
| Current - Supply (Max) | 12 mA |
| PSRR | 69dB ~ 54dB (120Hz ~ 10kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | LF120 |
Features of LF120ABDT-TR
* Very low-dropout voltage (0.45 V)
* Very low quiescent current (typ. 50 µA in OFF mode, 500 µA in ON mode)
* Output current up to 500 mA
* Logic-controlled electronic shutdown
* Output voltages of 1.5; 1.8; 2.5; 3.3; 4.7; 5; 6; 8; 8.5; 9; 12 V
* Automotive grade product: 1.8 V, 2.5 V, 3.3 V, 5.0 V, 8.0 V, 8.5 V VOUT in DPAK and PPAK packages
* Internal current and thermal limit
* Only 2.2 µF for stability
* Available in ±1% (AB), ±1.5% (AC) or ±2% (C) selection at 25 °C
* Supply voltage rejection: 80 db (typ.)
* Temperature range: from -40 to 125 °C
Decriptions of LF120ABDT-TR
The LFXX is a very low drop regulator available in TO-220, TO-220FP, DPAK and PPAK packages and in a wide range of output voltages.
Environmental & Export Classifications of LF120ABDT-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
