TXB0104QPWRQ1 Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TXB0104QPWRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Channels Per Circuit: | 4 |
|---|---|---|---|
| Voltage - VCCA: | 1.2 V ~ 3.6 V | Voltage - VCCB: | 1.65 V ~ 5.5 V |
| Output Type: | Tri-State, Non-Inverted | Data Rate: | 100Mbps |
| Operating Temperature: | -40°C ~ 125°C (TA) | Channel Type: | Bidirectional |
Product Description
TXB0104QPWRQ1 Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps
Specifications of TXB0104QPWRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | 100Mbps |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |

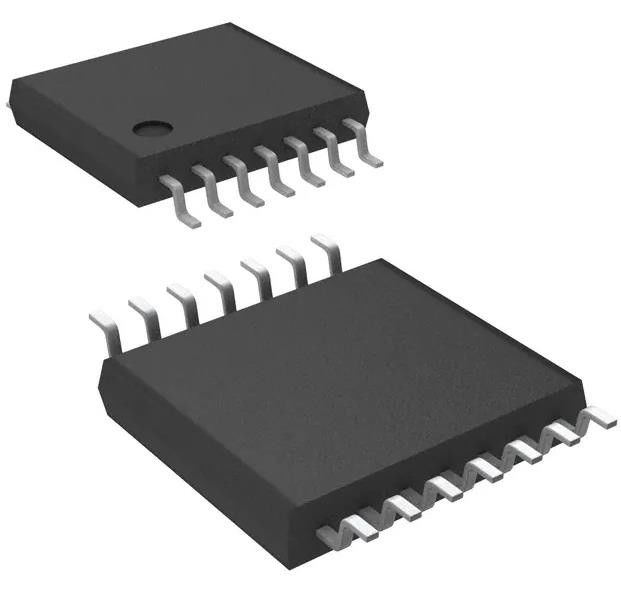

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | TXB0104 |
Features of TXB0104QPWRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
• 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
• VCC Isolation Feature – If Either VCC Input is at GND, All Outputs are in the High-Impedance State
• OE Input Circuit Referenced to VCCA
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– A port
• ±2500-V Human-Body Model (A114-B)
• ±1000-V Charged-Device Model (C101)
– B port
• ±15000-V Human-Body Model (A114-B)
• ±1000-V Charged-Device Model (C101)
Decriptions of TXB0104QPWRQ1
• Automotive infotainment
• Advanced Driver Assistance System (ADAS)
• Telematics
Environmental & Export Classifications of TXB0104QPWRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
