LTC3412AEUF#TRPBF Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC3412AEUF#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.25V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 0.8V |
| Voltage - Output (Max): | 5V | Current - Output: | 3A |
| Frequency - Switching: | 300kHz ~ 4MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
Product Description
LTC3412AEUF#TRPBF Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A
Specifications of LTC3412AEUF#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.25V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Current - Output | 3A |
| Frequency - Switching | 300kHz ~ 4MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

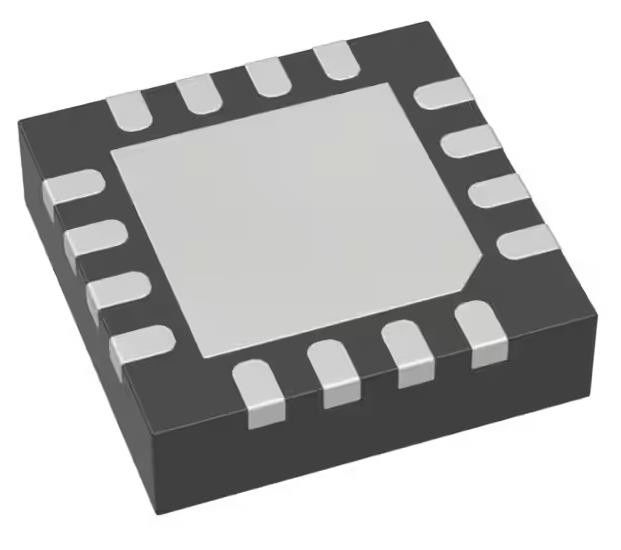

| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Base Product Number | LTC3412 |
Features of LTC3412AEUF#TRPBF
* High Efficiency: Up to 95%
* 3A Output Current
* Low Quiescent Current: 64μA
* Low RDS(ON) Internal Switch: 77mΩ
* 2.25V to 5.5V Input Voltage Range
* Programmable Frequency: 300kHz to 4MHz
* ±2% Output Voltage Accuracy
* 0.8V Reference Allows Low Output Voltage
* Selectable Forced Continuous/Burst Mode® Operation with Adjustable Burst Clamp
* Synchronizable Switching Frequency
* Low Dropout Operation: 100% Duty Cycle
* Power Good Output Voltage Monitor
* Overtemperature Protected
* Available in 16-Lead Exposed Pad TSSOP and QFN Packages
Decriptions of LTC3412AEUF#TRPBF
* Point-of-Load Regulation
* Notebook Computers
* Portable Instruments
* Distributed Power Systems
Environmental & Export Classifications of LTC3412AEUF#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
