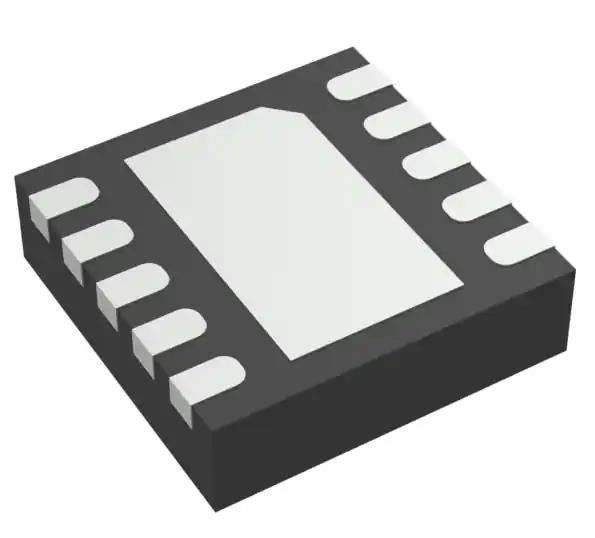

TPS63700DRCR Buck-Boost Switching Regulator IC Negative Adjustable -2V 360mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS63700DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Resistance: | 2 KOhms |
|---|---|---|---|
| Tolerance: | ±0.1% | Power (Watts): | 0.1W, 1/10W |
| Composition: | Thin Film | Temperature Coefficient: | ±25ppm/°C |
| Operating Temperature: | -55°C ~ 155°C | Supplier Device Package: | 603 |
Product Description
TPS63700DRCR Buck-Boost Switching Regulator IC Negative Adjustable -2V 360mA
Specifications of TPS63700DRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Up/Step-Down |
| Output Configuration | Negative |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -2V |
| Voltage - Output (Max) | -15V |
| Current - Output | 360mA |
| Frequency - Switching | 1.38MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS63700 |
Features of TPS63700DRCR
* Adjustable Output Voltage Down to -15 V
* 2.7-V to 5.5-V Input Voltage Range
* Up to 360-mA Output Current
* 1000-mA Typical Switch Current Limit
* Up to 84% Efficiency
* Typical 1.4-MHz Fixed-Frequency PWMOperation
* Thermal Shutdown
* Typical -19-V Output Overvoltage Protection
* 1.5-pA Shutdown Current
* Small 3-mm x 3-mm SON-10 Package (DRC)
Decriptions of TPS63700DRCR
* Generic Negative Voltage Supply
* Small-to-Medium Size OLED Displays
* Bias Supply
Environmental & Export Classifications of TPS63700DRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
