TPS63000DRCT Buck-Boost Switching Regulator IC Positive Adjustable 1.2V 1 Output 1.6A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS63000DRCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 1.8V | Voltage - Input (Max): | 5.5V |
| Voltage - Output (Min/Fixed): | 1.2V | Voltage - Output (Max): | 5.5V |
| Current - Output: | 1.6A (Switch) | Frequency - Switching: | 1.25MHz ~ 1.5MHz |
Product Description
TPS63000DRCT Buck-Boost Switching Regulator IC Positive Adjustable 1.2V 1 Output 1.6A
Specifications of TPS63000DRCT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 1.6A (Switch) |
| Frequency - Switching | 1.25MHz ~ 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

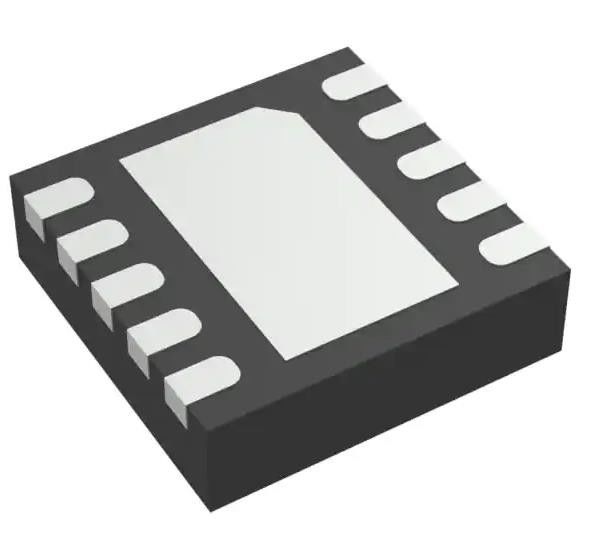

| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS63000 |
Features of TPS63000DRCT
* Input Voltage Range: 1.8 V to 5.5 V
* Fixed and Adjustable Output Voltage Options from1.2 V to 5.5 V
* Up to 96% Efficiency
* 1200-mA Output Current at 3.3 V in Step-DownMode (Vin = 3.6 V to 5.5 V)
* Up to 800-mA Output Current at 3.3 V in BoostMode (Vn > 2.4 V)
* Automatic Transition Between Step-Down andBoost Mode
* Device Quiescent Current less than 50 A
* Power-Save Mode for lmproved Efficiency at LowOutput Power
* Forced Fixed Frequency Operation andSynchronization Possible
* Load Disconnect During Shutdown
* Overtemperature Protection
* Available in a Small 3-mm x 3-mm 10-Pin VSONPackage(QFN)
Applications of TPS63000DRCT
* Input Voltage Range: 1.8 V to 5.5 V
* Fixed and Adjustable Output Voltage Options from1.2 V to 5.5 V
* Up to 96% Efficiency
* 1200-mA Output Current at 3.3 V in Step-DownMode (Vin = 3.6 V to 5.5 V)
* Up to 800-mA Output Current at 3.3 V in BoostMode (Vn > 2.4 V)
* Automatic Transition Between Step-Down andBoost Mode
* Device Quiescent Current less than 50 A
* Power-Save Mode for lmproved Efficiency at LowOutput Power
* Forced Fixed Frequency Operation andSynchronization Possible
* Load Disconnect During Shutdown
* Overtemperature Protection
* Available in a Small 3-mm x 3-mm 10-Pin VSONPackage(QFN)
Environmental & Export Classifications of TPS63000DRCT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
