TPS61088RHLT Boost Switching Regulator IC Positive Adjustable 4.5V 1 Output 10A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61088RHLT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Function: | Step-Up | Topology: | Boost |
|---|---|---|---|
| Output Type: | Adjustable | Adjustable: | 1 |
| Voltage - Input (Min): | 2.7V | Voltage - Input (Max): | 12V |
| Voltage - Output (Min/Fixed): | 4.5V | Voltage - Output (Max): | 12.6V |
Product Description
TPS61088RHLT Boost Switching Regulator IC Positive Adjustable 4.5V 1 Output 10A
Specifications of TPS61088RHLT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 4.5V |
| Voltage - Output (Max) | 12.6V |
| Current - Output | 10A |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

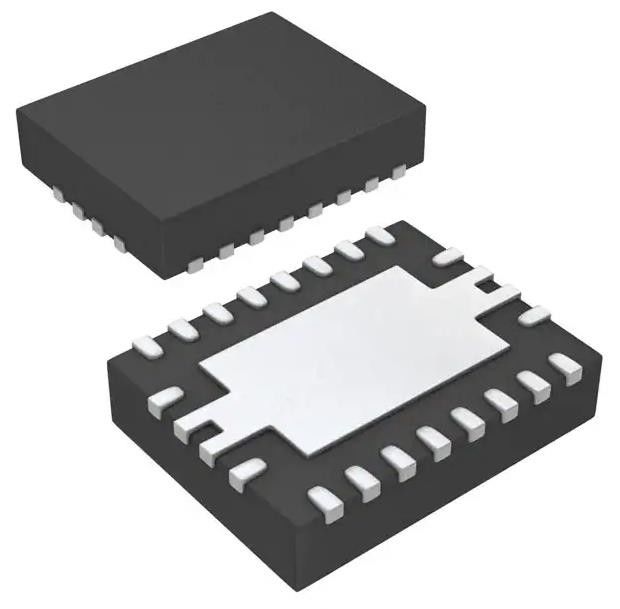

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| Base Product Number | TPS61088 |
Features of TPS61088RHLT
• 2.7-V to 12-V input voltage range
• 4.5-V to 12.6-V output voltage range
• 10-A switch current
• Up to 91% efficiency at VIN = 3.3 V, VOUT = 9 V, and IOUT = 3 A
• Mode selection between PFM mode and forced PWM mode at light load
• 1.0-µA current into the VIN pin during shutdown
• Resistor-programmable switch peak current limit
• Adjustable switching frequency: 200 kHz to 2.2 MHz
• Programmable soft start
• Output overvoltage protection at 13.2 V
• Cycle-by-cycle overcurrent protection
• Thermal shutdown
• 4.50-mm × 3.50-mm 20-pin VQFN package
• Create a custom design using the TPS61088 with the WEBENCH Power Designer
Applications of TPS61088RHLT
• Portable POS terminal
• Bluetooth™ speaker
• E-cigarette
• Thunderbolt interface
• Quick charge power bank
Environmental & Export Classifications of TPS61088RHLT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
