TPS51317RGBR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS51317RGBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 6.5V |
| Voltage - Output (Min/Fixed): | 0.6V | Voltage - Output (Max): | 2V |
| Current - Output: | 6A | Frequency - Switching: | 800kHz, 1MHz, 1.2MHz, 1.5MHz |
Product Description
TPS51317RGBR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A
Specifications of TPS51317RGBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP+™ |
| Package | Tape & Reel (TR) |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 2V |
| Current - Output | 6A |
| Frequency - Switching | 800kHz, 1MHz, 1.2MHz, 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

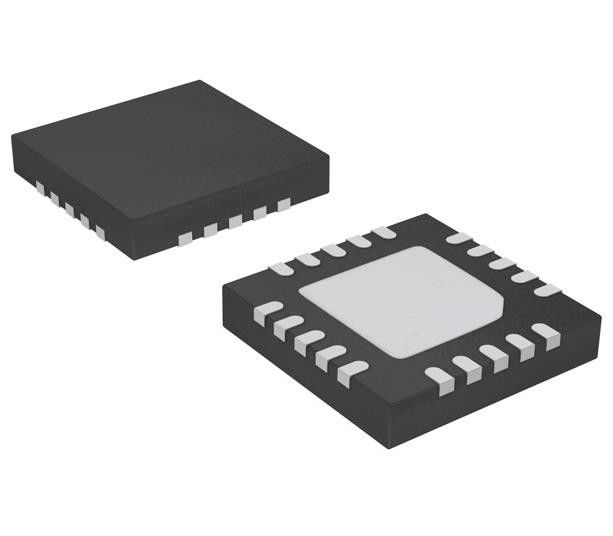

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4) |
| Base Product Number | TPS51317 |
Features of TPS51317RGBR
* Integrated FETs Converter w/T! ProprietaryD-CAP+TM Mode Architecture
* Minimum External Components CountSupport all MLCC Output Capacitor andSP/POSCAP
* Auto-Skip Mode and Ripple Reduction Mode
* Optimized Efficiency at Light and Heavy Loads
* Selectable 800-kHz, 1-MHz, 1.2-MHz and1.5-MHz Frequency
* Up to 6.0-V Conversion Voltage Range
* Adjustable Output Voltage Range From 0.6 Vto 2 V
* Small 3.5 mm x 4 mm, 20-Pin QFN Package
Applications of TPS51317RGBR
• Low-Voltage Applications Stepping Down from 5-V or 3.3-V Rail
Environmental & Export Classifications of TPS51317RGBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
