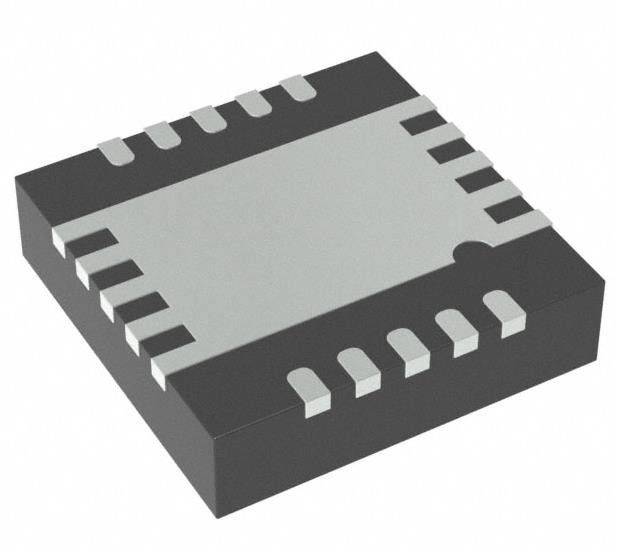

A6984TR Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 400mA 10-VFDFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | A6984TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Topology: | Buck | Output Type: | Fixed |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 36V | Voltage - Output (Min/Fixed): | 3.3V |
| Current - Output: | 400mA | Frequency - Switching: | 250kHz ~ 600kHz |
Product Description
A6984TR Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 400mA 10-VFDFN
Specifications of A6984TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 400mA |
| Frequency - Switching | 250kHz ~ 600kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VFDFPN (4x4) |
| Base Product Number | A6984 |
Features of A6984TR
*AEC-Q100 qualified
*400 mA DC output current
*4.5 V to 36 V operating input voltage
*Synchronous rectification
*Low consumption mode or low noise mode
*75 µA IQ at light load (LCM VOUT = 3.3 V)
*13 µA IQ-SHTDWN
*Adjustable fSW (250 kHz - 600 kHz)
*Output voltage adjustable from 0.9 V
*No resistor divider required for 3.3 V VOUT
*VBIAS maximizes efficiency at light load
*350 mA valley current limit
*Constant on-time control scheme
*PGOOD open collector
*Thermal shutdown
Applications of A6984TR
*Car body and ADAS applications (LCM)
*Car audio and low noise applications (LNM)
Environmental & Export Classifications of A6984TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
