TLV62130ARGTR Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV62130ARGTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Function: | Step-Down | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 4V |
| Voltage - Input (Max): | 17V | Voltage - Output (Min/Fixed): | 0.9V |
| Voltage - Output (Max): | 5V | Current - Output: | 3A |
| Frequency - Switching: | 2.5MHz | ||
Product Description
TLV62130ARGTR Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 3A
Specifications of TLV62130ARGTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | DCS-Control™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 5V |
| Current - Output | 3A |
| Frequency - Switching | 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

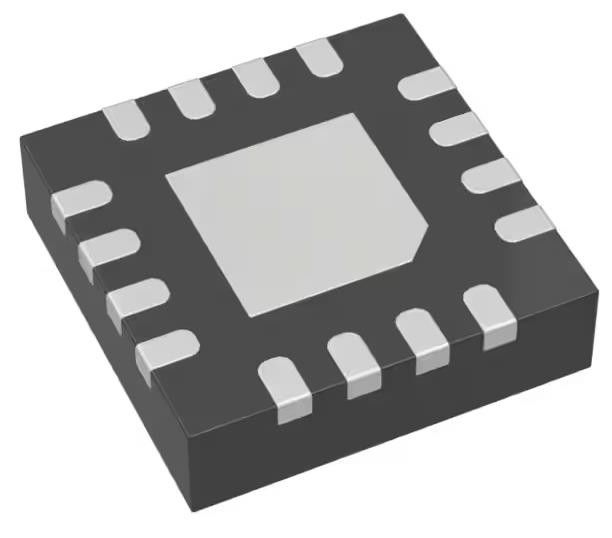

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| Base Product Number | TLV62130 |
Features of TLV62130ARGTR
• DCS-Control™ Topology
• Input Voltage Range: 3 V to 17 V
• Up to 3-A Output Current
• Adjustable Output Voltage From 0.9 V to 5.5 V
• Pin-Selectable Output Voltage (Nominal, + 5%)
• Programmable Soft Start and Tracking
• Seamless Power Save Mode Transition
• Quiescent Current of 19 µA (Typical)
• Selectable Operating Frequency
• Power Good Output
• 100% Duty Cycle Mode
• Short-Circuit Protection
• Over Temperature Protection
• For Improved Feature Set, see TPS62130
• Pin to Pin compatible with TLV62150
• Available in a 3-mm × 3-mm, VQFN-16 Package
• Create a Custom Design Using the TLV62130 With the WEBENCH® Power Designer
Applications of TLV62130ARGTR
• Standard 12-V Rail Supplies
• POL Supplies from Single or Multiple Li-Ion Batteries
• Motor Drives, Electronic Point of Sales
• Mobile PC's, Tablets, Modems, Cameras
• TV, Set-top Boxes, Audio
Environmental & Export Classifications of TLV62130ARGTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
