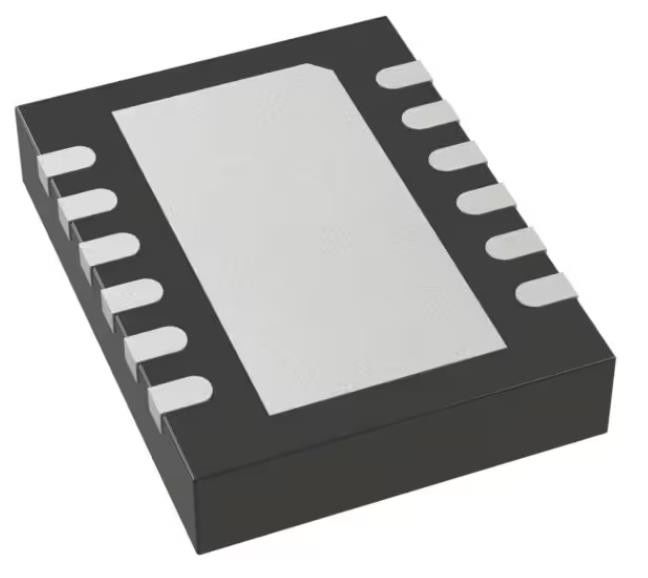

LTC4216IDE#TRPBF Hot Swap Controller 1 Channel General Purpose 12-DFN (4x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC4216IDE#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | UVLO | Type: | Hot Swap Controller |
|---|---|---|---|
| Number Of Channels: | 1 | Internal Switch(s): | No |
| Applications: | General Purpose | Programmable Features: | Auto Retry, Current Limit, Fault Timeout, Latched Fault |
| Voltage - Supply: | 2.3V ~ 6V | Operating Temperature: | -40°C ~ 85°C |
| High Light: | LTC4216IDE#TRPBF,LTC4216IDE#TRPBF Hot Swap Controller |
||
Product Description
LTC4216IDE#TRPBF Hot Swap Controller 1 Channel General Purpose 12-DFN (4x3)
Specifications of LTC4216IDE#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Hot Swap Controllers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Hot Swap Controller |
| Number of Channels | 1 |
| Internal Switch(s) | No |
| Applications | General Purpose |
| Features | UVLO |
| Programmable Features | Auto Retry, Current Limit, Fault Timeout, Latched Fault |
| Voltage - Supply | 2.3V ~ 6V |
| Current - Output (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.6 mA |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x3) |
| Base Product Number | LTC4216 |
Features of LTC4216IDE#TRPBF
* Allows Safe Board Insertion and Removal from a Live Backplane
* Controls Load Voltages from 0V to 6V
* Fast Response Limits Peak Fault Current
* Adjustable Analog Current Limit
* Adjustable Soft-Start with Inrush Current Limiting
* Adjustable Response Time for Overcurrent Protection
* Low Circuit Breaker Trip Threshold: 25mV
* No External Gate Capacitor Required
* Internal Charge Pump for N-Channel MOSFET
* Adjustable Output Power-Up Rate
* RESET and FAULT Output
* 10-Lead MSOP and 12-Lead (4mm × 3mm) DFN Packages
Applications of LTC4216IDE#TRPBF
* Electronic Circuit Breaker
* Live Board Insertion and Removal
* Industrial High Side Switch/Circuit Breaker
* Optical Networking
Environmental & Export Classifications of LTC4216IDE#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
