LTC3642IDD-3.3#TRPBF Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 50mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC3642IDD-3.3#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 45V |
| Voltage - Output (Min/Fixed): | 3.3V | Current - Output: | 50mA |
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | LTC3642IDD-3.3#TRPBF,Positive Fixed Buck Switching Regulator IC,LTC3642IDD-3.3#TRPBF Switching Regulator IC |
||
Product Description
LTC3642IDD-3.3#TRPBF Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 50mA
Specifications of LTC3642IDD-3.3#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 50mA |
| Frequency - Switching | - |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

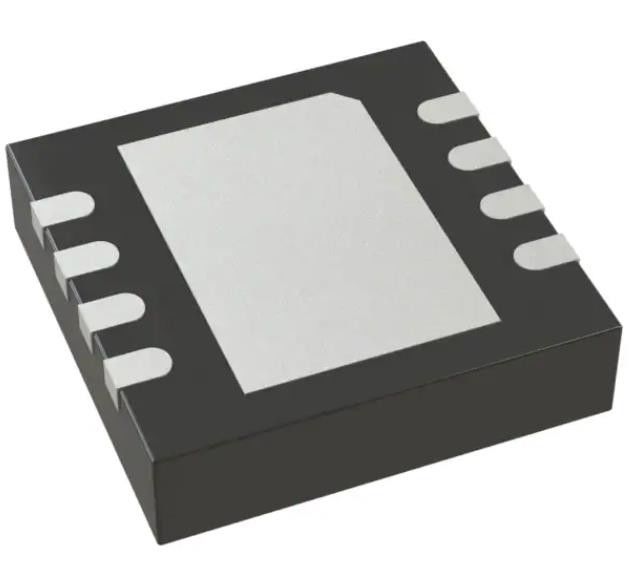

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| Base Product Number | LTC3642 |
Features of LTC3642IDD-3.3#TRPBF
* Wide Input Voltage Range: 4.5V to 45V
* Tolerant of 60V Input Transients
* Internal High Side and Low Side Power Switches
* No Compensation Required
* 50mA Output Current
* Low Dropout Operation: 100% Duty Cycle
* Low Quiescent Current: 12µA
* 0.8V Feedback Voltage Reference
* Adjustable Peak Current Limit
* Internal and External Soft-Start
* Precise RUN Pin Threshold with Adjustable Hysteresis
* 3.3V, 5V and Adjustable Output Versions
* Only Three External Components Required for Fixed Output Versions
* Low Profile (0.75mm) 3mm × 3mm DFN and Thermally-Enhanced MS8E Packages
Applications of LTC3642IDD-3.3#TRPBF
* 4mA to 20mA Current Loops
* Industrial Control Supplies
* Distributed Power Systems
* Portable Instruments
* Battery-Operated Devices
* Automotive Power Systems
Environmental & Export Classifications of LTC3642IDD-3.3#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
