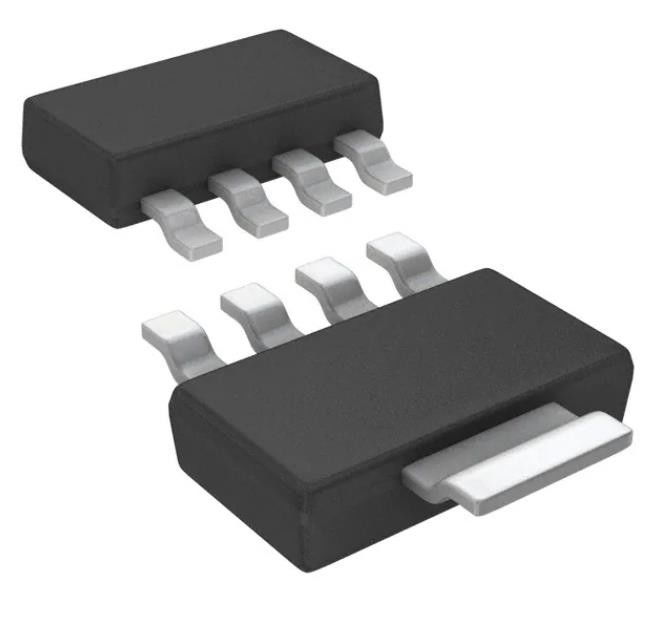

LP38692MP-ADJ/NOPB Linear Voltage Regulator IC Positive Adjustable 1 Output 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP38692MP-ADJ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 10V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.25V | Voltage - Output (Max): | 9V |
| Current - Output: | 1A | Current - Quiescent (Iq): | 55 µA |
| Current - Supply (Max): | 100 µA | PSRR: | 55dB (120Hz) |
| Highlight: | LP38692MP-ADJ/NOPB,Linear Voltage Regulator IC 1A |
||
Product Description
LP38692MP-ADJ/NOPB Linear Voltage Regulator IC Positive Adjustable 1 Output 1A
Specifications of LP38692MP-ADJ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 9V |
| Voltage Dropout (Max) | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-5, TO-261AB |
| Supplier Device Package | SOT-223-5 |
| Base Product Number | LP38692 |
Features of LP38692MP-ADJ/NOPB
• Input Voltage Range: 2.7 V to 10 V
• Output Voltage Range: 1.25 V to 9 V
• 2.5% Adjust Pin Voltage Accuracy (25°C)
• Low Dropout Voltage: 450 mV at 1 A (5-V Typical VOUT)
• Precision (Trimmed) Bandgap Reference
• Ensured Specs for –40°C to +125°C
• 1-μA Off-State Quiescent Current
• Thermal Overload Protection
• Foldback Current Limiting
• Enable (EN) Pin (LP38692-ADJ)
• 5-Pin SOT-223 and 6-Pin WSON Packages
Applications of LP38692MP-ADJ/NOPB
• Hard Disk Drives
• Notebook Computers
• Battery-Powered Devices
• Portable Instrumentation
Environmental & Export Classifications of LP38692MP-ADJ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
