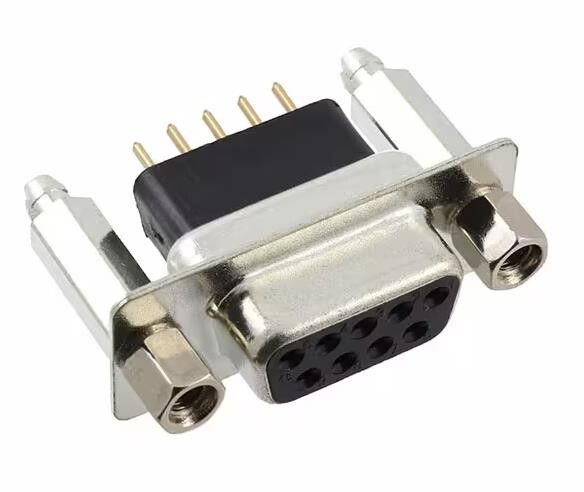

DE09-SE-1-BL-JS 9 Position D-Sub Receptacle, Female Sockets Connector
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DE09-SE-1-BL-JS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Connector Style: | D-Sub | Connector Type: | Receptacle, Female Sockets |
|---|---|---|---|
| Number Of Positions: | 9 | Number Of Rows: | 2 |
| Mounting Type: | Through Hole | Shell Size, Connector Layout: | 1 (DE, E) |
| Flange Feature: | Board Side (4-40); Mating Side, Female Screwlock (4-40) | Termination: | Solder |
Product Description
DE09-SE-1-BL-JS 9 Position D-Sub Receptacle, Female Sockets Connector
Specifications of DE09-SE-1-BL-JS
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| D-Sub, D-Shaped Connectors | |
| D-Sub Connector Assemblies | |
| Mfr | Adam Tech |
| Series | DSE |
| Package | Tray |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | - |
| Flange Feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | Board Lock |
| Voltage Rating | 250VAC |
| Color | Black |
| Contact Form | - |
| Dielectric Material | Thermoplastic |
| Wire Gauge | - |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 105°C |
| Base Product Number | DE09 |
Environmental & Export Classifications of DE09-SE-1-BL-JS
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
