LM5116MHX / NOPB Buck Regulator IC Positive Output Step Down DC DC Controller IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5116MHX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Topology: | Buck | Number Of Outputs: | 1 |
|---|---|---|---|
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 6V ~ 100V |
| Frequency - Switching: | 200kHz, 535kHz | Synchronous Rectifier: | Yes |
| Clock Sync: | Yes | Operating Temperature: | -55°C ~ 125°C (TJ) |
| High Light: | LM5116MHX / NOPB,LM5116MHX / NOPB Buck Regulator IC,Step Down DC DC Controller IC |
||
Product Description
LM5116MHX / NOPB Buck Regulator Positive Output Step-Down DC-DC Controller IC

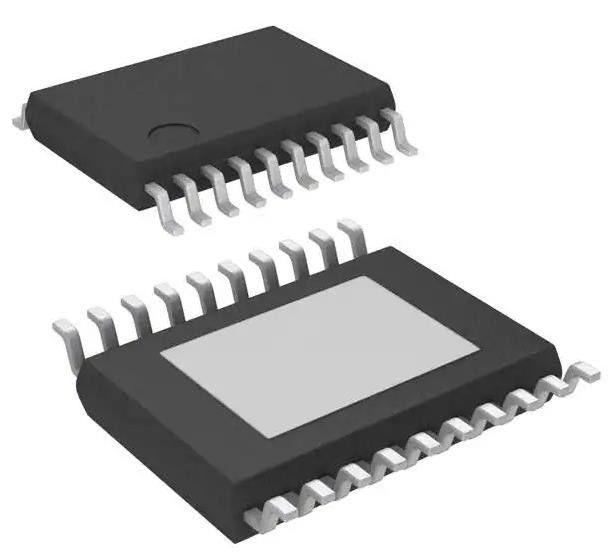

IC REG CTRLR BUCK 20TSSOP
Specifications of LM5116MHX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 100V |
| Frequency - Switching | 200kHz, 535kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Base Product Number | LM5116 |
Features of LM5116MHX/NOPB
• Emulated Peak Current Mode
• Wide Operating Range Up to 100 V
• Low IQ Shutdown (< 10 µA)
• Drives Standard or Logic Level MOSFETs
• Robust 3.5-A Peak Gate Drive
• Free-run or Synchronous Operation to 1 MHz
• Optional Diode Emulation Mode
• Programmable Output from 1.215 V to 80 V
• Precision 1.5% Voltage Reference
• Programmable Current Limit
• Programmable Soft-Start
• Programmable Line Undervoltage Lockout
• Automatic Switch to External Bias Supply
• HTSSOP-20 Exposed Pad
• Thermal Shutdown
• Create a Custom Design Using the LM5116 with the WEBENCH Power Designer
Applications of LM5116MHX/NOPB
• Automotive Infotainment
• Industrial DC-DC Motor Drivers
• Automotive USB Adapters
• Telecom Servers
Environmental & Export Classifications of LM5116MHX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
