MAX15020ATP+T Switching Regulator IC Adjustable 0.5V 1 Output 2A Exposed Pad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX15020ATP+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Function: | Step-Down | Topology: | Buck |
|---|---|---|---|
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 7.5V | Voltage - Input (Max): | 40V |
| Voltage - Output (Min/Fixed): | 0.5V | Voltage - Output (Max): | 36V |
| Current - Output: | 2A | Frequency - Switching: | 300kHz ~ 500kHz |
| High Light: | MAX15020ATP+T,MAX15020ATP+T Switching Regulator IC |
||
Product Description

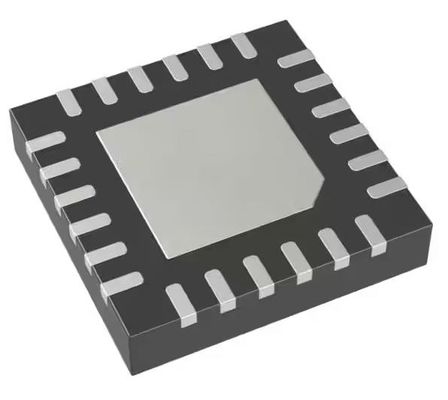

MAX15020ATP+T Switching Regulator IC Adjustable 0.5V 1 Output 2A Exposed Pad
IC REG BUCK ADJ 2A 20TQFN
Specifications of MAX15020ATP+T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 36V |
| Current - Output | 2A |
| Frequency - Switching | 300kHz ~ 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (5x5) |
| Base Product Number | MAX15020 |
Features of MAX15020ATP+T
● Wide 7.5V to 40V Input Voltage Range
● 2A Output Current, Up to 96% Efficiency
● Dynamic Programmable Output Voltage (0.5V to 36V)
● Maximum Duty Cycle of 95% (typ) at 300kHz
● 100kHz to 500kHz Synchronizable SYNC Frequency Range
● Configurable UVLO and Soft-Start
● Low-Noise, Voltage-Mode Step-Down Converter
● Programmable Output-Voltage Slew Rate
● Lossless Constant Current Limit with Fixed
● Timeout to Hiccup Mode
● Extremely Low-Power Consumption (< 6μA typ) in Shutdown Mode
● 20-Pin (5mm x 5mm) Thin QFN Package
Applications of MAX15020ATP+T
● Printer Head Driver Power Supply
● Industrial Power Supply
● Step-Down Power Supply
Environmental & Export Classifications of MAX15020ATP+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
