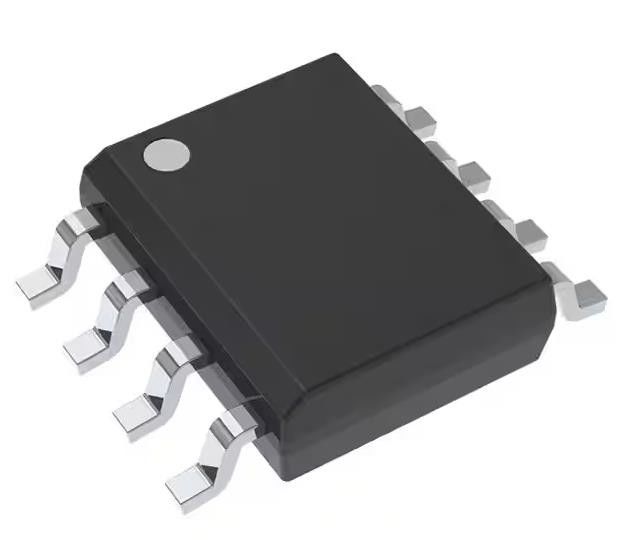

TL2843BDR-8 Forward Regulator Positive Output DC-DC Controller IC 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL2843BDR-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Transistor Driver | Function: | Step-Up, Step-Up/Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Boost, Flyback, Forward |
| Number Of Outputs: | 1 | Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 7.6V ~ 30V | Frequency - Switching: | Up To 500kHz |
| Duty Cycle (Max): | 96% | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TL2843BDR-8,TL2843BDR-8 DC-DC Controller IC |
||
Product Description
TL2843BDR-8 Forward Regulator Positive Output DC-DC Controller IC 8-SOIC
Boost, Flyback, Forward Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-SOIC
Specifications of TL2843BDR-8
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TL2843 |
Features of BAT46W-E3-08
* Low Start-Up Current (<0.5 mA)
• Trimmed Oscillator Discharge Current
• Current Mode Operation to 500 kHz
• Automatic Feed-Forward Compensation
• Latching PWM for Cycle-by-Cycle Current Limiting
• Internally Trimmed Reference With Undervoltage Lockout
• High-Current Totem-Pole Output Undervoltage Lockout With Hysteresis
• Double-Pulse Suppression
Introduction of BAT46W-E3-08
Case: SOD-123
Weight: approx. 10.3 mg
Packaging codes/options:
18/10K per 13" reel (8 mm tape), 10K/box
08/3K per 7" reel (8 mm tape), 15K/box
Environmental & Export Classifications of TL2843BDR-8
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
