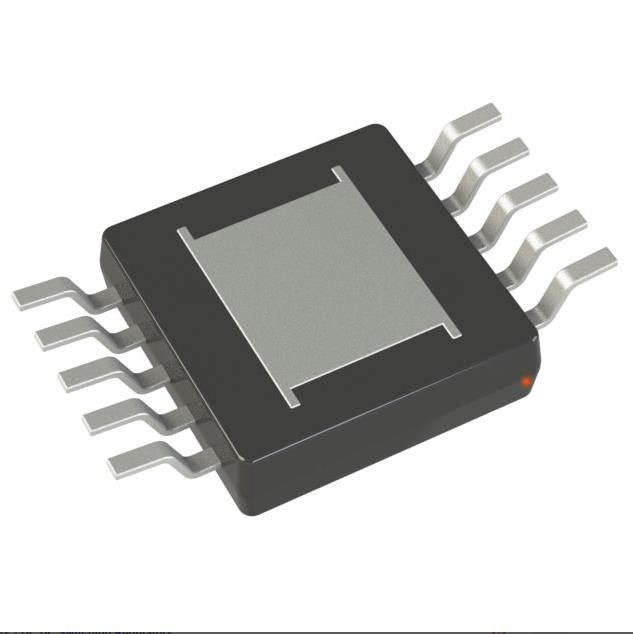

LTC3407AEMSE#PBF Switching Regulator IC Adjustable 0.6V 2 Output 600mA 10-TFSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC3407AEMSE#PBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Function: | Step-Down | Number Of Outputs: | 2 |
|---|---|---|---|
| Voltage - Input (Min): | 2.5V | Voltage - Input (Max): | 5.5V |
| Voltage - Output (Min/Fixed): | 0.6V | Voltage - Output (Max): | 5V |
| Current - Output: | 600mA | Frequency - Switching: | 1.5MHz |
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | LTC3407AEMSE#PBF,LTC3407AEMSE#PBF Switching Regulator IC |
||
Product Description
LTC3407AEMSE#PBF Switching Regulator IC Adjustable 0.6V 2 Output 600mA 10-TFSOP
IC REG BUCK ADJ 600MA DL 10MSOP
Specifications of LTC3407AEMSE#PBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5V |
| Current - Output | 600mA |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| Base Product Number | LTC3407 |
Features of LTC3407AEMSE#PBF
* High Effi ciency: Up to 96%
* Low Ripple (35mVP-P) Burst Mode Operation; IQ = 40μA
* 1.5MHz Constant Frequency Operation
* No Schottky Diodes Required
* Low RDS(ON) Internal Switches: 0.35Ω
* Current Mode Operation for Excellent Line and Load Transient Response
* Short-Circuit Protected
* Low Dropout Operation: 100% Duty Cycle
* Ultralow Shutdown Current: IQ < 1μA
* Output Voltages from 5V down to 0.6V
* Power-On Reset Output
* Externally Synchronizable Oscillator
* Optional External Soft-Start
* Small Thermally Enhanced MSOP and 3mm × 3mm DFN Packages
Applications of LTC3407AEMSE#PBF
* PDAs/Palmtop PCs
* Digital Cameras
* Cellular Phones
* Wireless and DSL Modems
Environmental & Export Classifications of LTC3407AEMSE#PBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
