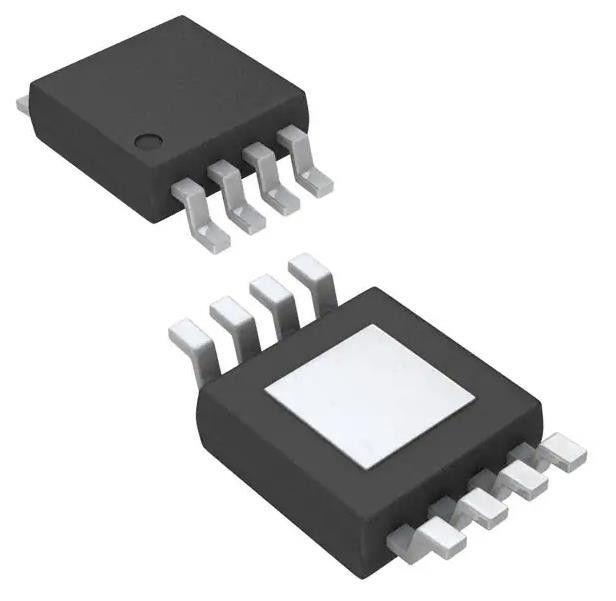

MP24943DN-LF-Z DC DC Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | XA7A15T-1CPG236Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Step-Down | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 55V |
| Voltage - Output (Min/Fixed): | 0.8V | Voltage - Output (Max): | 45V |
| Current - Output: | 3A | Frequency - Switching: | 100kHz |
| High Light: | MP24943DN-LF-Z,8-SOIC DC DC Switching Regulator IC,MP24943DN-LF-Z Switching Regulator IC |
||
Product Description
MP24943DN-LF-Z Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC
IC REG BUCK ADJUSTABLE 3A 8SOIC
Specifications of MP24943DN-LF-Z
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Monolithic Power Systems Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 55V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 45V |
| Current - Output | 3A |
| Frequency - Switching | 100kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOICE |
| Base Product Number | MP24943 |
Features of MP24943DN-LF-Z
* Wide 4.5V to 55V Operating Input Range
* Programmable Output Over-Voltage Protection
* Output Adjustable from 0.8V to 45V
* 0.15Ω Internal Power MOSFET Switch
* Stable with Low ESR Output Ceramic Capacitors
* Fixed 100kHz Frequency
* Low EMI Signature
* Thermal Shutdown
* Cycle-by-Cycle Over-Current Protection
* Available in SOIC8 and SOIC8E Packages
Applications of MP24943DN-LF-Z
* Automotive GPS
* Automotive Entertainment
* Power Supply for Linear Chargers
Environmental & Export Classifications of MP24943DN-LF-Z
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
