TLV62568PDRLR Switching Regulator IC With 0.6V 1 Output 1A SOT-563 SOT-666
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV62568PDRLR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.5V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 5.5V | Current - Output: | 1A |
| Frequency - Switching: | 1.5MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | TLV62568PDRLR,TLV62568PDRLR Switching Regulator IC,DC DC Switching Regulator IC |
||
Product Description

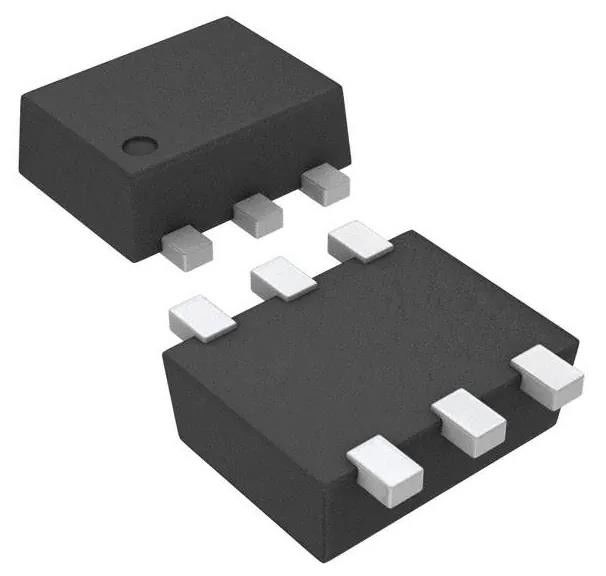

TLV62568PDRLR Switching Regulator IC With 0.6V 1 Output 1A SOT-563 SOT-666
IC REG BUCK ADJ 1A SOT563-6
Specifications of TLV62568PDRLR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 1A |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-5X3 |
| Base Product Number | TLV62568 |
Features of TLV62568PDRLR
• Up to 95% Efficiency
• Low RDS(ON) Switches 150 mΩ / 100 mΩ
• 2.5-V to 5.5-V Input Voltage Range
• Adjustable Output Voltage from 0.6 V to VIN
• Power Save Mode for Light Load Efficiency
• 100% Duty Cycle for Lowest Dropout
• 35-µA Operating Quiescent Current
• 1.5-MHz Switching Frequency
• Power Good Output
• Over Current Protection
• Internal Soft Startup
• Thermal Shutdown Protection
• Available in SOT Package
• Pin-to-Pin Compatible with TLV62569
• Create a Custom Design Using the TLV62568 With the WEBENCH® Power Designer
Applications of TLV62568PDRLR
• General Purpose POL Supply
• Network Video Camera
• Set Top Box
• Wireless Router
Environmental & Export Classifications of TLV62568PDRLR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
