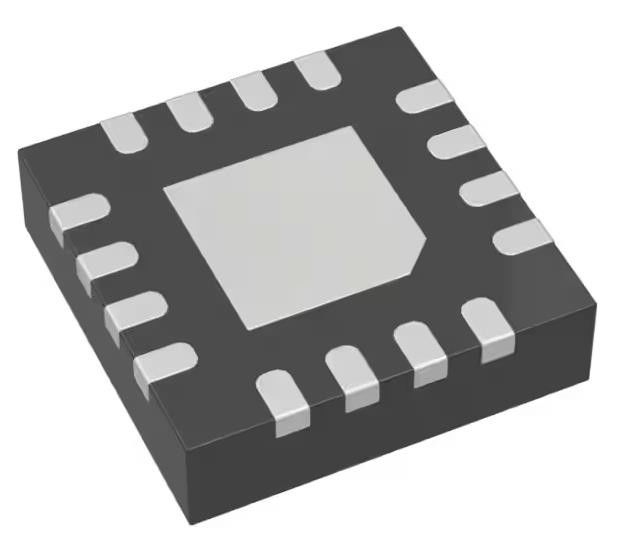

TPS53311RGTR Switching Regulator IC With 0.6V 1 Output 3A 16-VFQFN Exposed Pad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS53311RGTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.9V |
|---|---|---|---|
| Voltage - Input (Max): | 6V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 5.04V | Current - Output: | 3A |
| Frequency - Switching: | 1.1MHz | Synchronous Rectifier: | Yes |
| High Light: | TPS53311RGTR Switching Regulator IC,Switching Regulator IC 16-VFQFN |
||
Product Description
TPS53311RGTR Switching Regulator IC With 0.6V 1 Output 3A 16-VFQFN Exposed Pad
IC REG BUCK ADJUSTABLE 3A 16QFN
Specifications of TPS53311RGTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SmoothPWM™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.9V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.04V |
| Current - Output | 3A |
| Frequency - Switching | 1.1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| Base Product Number | TPS53311 |
Features of TPS53311RGTR
• 95.5% Maximum Efficiency
• Continuous 3-A Output Current
• Supports All MLCC Output Capacitor
• SmoothPWM™ Auto-Skip Eco-mode™ for LightLoad Efficiency
• Voltage Mode Control
• Supports Master-Slave Interleaved Operation
• Synchronization up to ±20% of Nominal Frequency
• Conversion Voltage Range From 2.9 V to 6 V
• Soft-Stop Output Discharge During Disable
• Adjustable Output Voltage Ranging From 0.6 V to 0.84 V × VIN
• Overcurrent, Overvoltage, and Overtemperature Protection
• Small, 3 mm × 3 mm, 16-Pin VQFN Package
• Open-Drain Power Good Indication
• Internal Boot Strap Switch
• Low RDS(on), 24 mΩ With 3.3-V Input and 19-mΩ With 5-V Input
• Supports Prebias Start-Up Functionality
Descriptions of TPS53311RGTR
• 5-V Step-Down Rail
• 3.3-V Step-Down Rail
Environmental & Export Classifications of TPS53311RGTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
