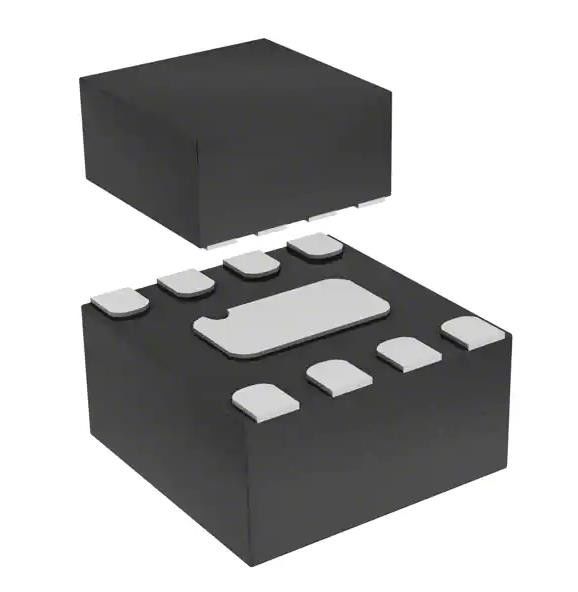

MASW-007921-TR3000 RF Switch IC WLAN SPDT 7 GHz 50Ohm 8-PDFN (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MASW-007921-TR3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency Range: | 0Hz ~ 7GHz | Isolation: | 30dB |
|---|---|---|---|
| Insertion Loss: | 1.2dB | Test Frequency: | 5.8GHz |
| Impedance: | 50Ohm | Operating Temperature: | -40°C ~ 85°C |
| High Light: | MASW-007921-TR3000 RF Switch IC,50Ohm RF Switch IC |
||
Product Description
MASW-007921-TR3000 RF Switch IC WLAN SPDT 7 GHz 50Ohm 8-PDFN (2x2)
MASW-007921-TR3000 IC RF SWITCH SPDT 7GHZ 8DFN
Specifications of MASW-007921-TR3000
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Switches | |
| Mfr | MACOM Technology Solutions |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| RF Type | WiMax, WLAN |
| Topology | Reflective |
| Circuit | SPDT |
| Frequency Range | 0Hz ~ 7GHz |
| Isolation | 30dB |
| Insertion Loss | 1.2dB |
| Test Frequency | 5.8GHz |
| P1dB | - |
| IIP3 | - |
| Features | - |
| Impedance | 50Ohm |
| Voltage - Supply | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-PDFN (2x2) |
| Base Product Number | MASW-007921 |
Features of MASW-007921-TR3000
* Ideal for high power SPDT switch applications including WiMAX, WLAN, Mesh Networks, and Fixed Wireless Access
* Broadband Performance: DC - 7.0 GHz
* Low Insertion Loss:
0.65 dB @ 3.5 GHz, RFC to TX
0.70 dB @ 3.5 GHz, RCF to RX
* High P0.1dB Compression:
40 dBm @ 3V, 3.5 GHz, RFC to TX
* Fast Settling for Low Gate Lag requirements
* Lead-Free 2 mm 8-Lead PDFN Package
* 100% Matte Tin Plating over Copper
* Halogen-Free ―Green‖ Mold Compound
* RoHS* Compliant and 260°C Reflow Compatible
* Asymmetrical Design for optimized performance
Descriptions of MASW-007921-TR3000
M/A-COM’s MASW-007921 is a broadband GaAs pHEMT MMIC SPDT switch available in a lead-free 2 mm 8-lead PDFN package.
Environmental & Export Classifications of MASW-007921-TR3000
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
