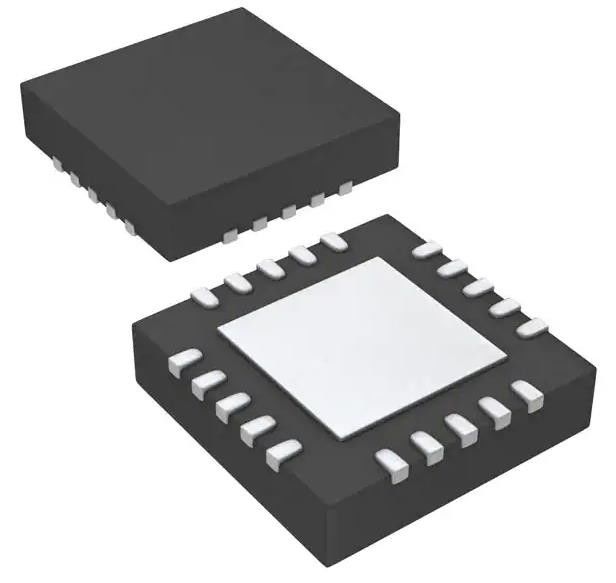

RT6203BLGQW Switching Regulator IC With Adjustable 0.8V 1 Output 5A 20-WFQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RT6203BLGQW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 4.5V |
|---|---|---|---|
| Voltage - Input (Max): | 18V | Voltage - Output (Min/Fixed): | 0.8V |
| Voltage - Output (Max): | 8V | Current - Output: | 5A |
| Frequency - Switching: | 700kHz | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | RT6203BLGQW Switching Regulator IC,Switching Regulator IC Adjustable 0.8V,Switching Regulator IC20-WFQFN |
||
Product Description
RT6203BLGQW Switching Regulator IC With Adjustable 0.8V 1 Output 5A 20-WFQFN
RT6203BLGQW IC REG BUCK ADJ 5A 20WQFN
Specifications of RT6203BLGQW
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Richtek USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 8V |
| Current - Output | 5A |
| Frequency - Switching | 700kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-WQFN (4x4) |
| Base Product Number | RT6203 |
Features of RT6203BLGQW
* VID Control Range Via I2 C Compatitable Interface : 0.72V to 1.48V in 10mV Steps
* Adjustable Current Limit
* Adjustable Thermal Shutdown
* Fast Transient Response
* Adjustable Output Voltage from 0.8V to 8V
* Steady 700kHz Switching Frequency
* Optimized for All Ceramic Capacitors
* Externally-Adjustable, Pre-Biased Compatible SoftStart
* Input Under-Voltage Lockout
* Output Over- and Under-Voltage Protection
* Power Good Output
* Thermal Shutdown
* RoHS Compliant and Halogen Free
Applications of RT6203BLGQW
* Industrial and Commercial Low Power Systems
* Computer Peripherals
* LCD Monitors and TVs
* Green Electronics/Appliances
* Point of Load Regulation for High-Performance DSPs,FPGAs
Environmental & Export Classifications of RT6203BLGQW
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
