LT3494EDDB#TRMPBF Voltage Regulators IC With Adjustable 2.3V 1 Output 115mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3494EDDB#TRMPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Step-Up | Output Configuration: | Positive |
|---|---|---|---|
| Topology: | Boost | Output Type: | Adjustable |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.3V |
| Voltage - Input (Max): | 16V | Voltage - Output (Min/Fixed): | 2.3V |
| Voltage - Output (Max): | 40V (Switch) | Current - Output: | 115mA (Switch) |
| High Light: | LT3494EDDB#TRMPBF Voltage Regulators IC,115mA Voltage Regulators IC |
||
Product Description
LT3494EDDB#TRMPBF Voltage Regulators IC With Adjustable 2.3V 1 Output 115mA
LT3494EDDB#TRMPBF Boost Switching Regulator IC Positive Adjustable 2.3V 1 Output 115mA (Switch) 8-WFDFN Exposed Pad
Specifications of LT3494EDDB#TRMPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.3V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 2.3V |
| Voltage - Output (Max) | 40V (Switch) |
| Current - Output | 115mA (Switch) |
| Frequency - Switching | - |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

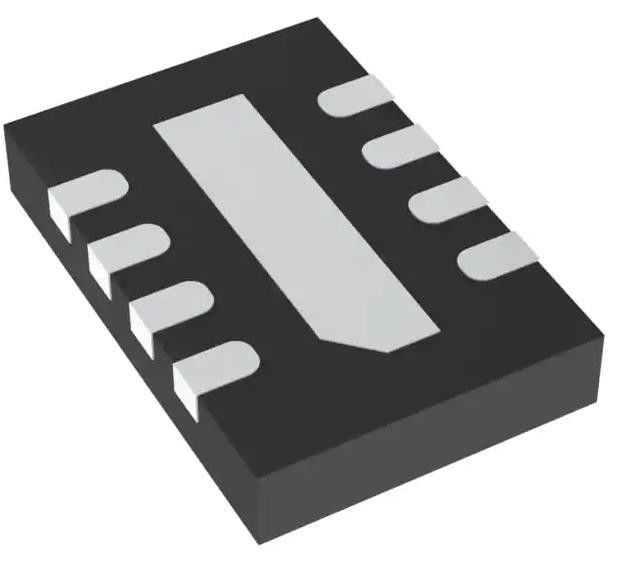

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x2) |
| Base Product Number | LT3494 |
Features of LT3494EDDB#TRMPBF
■ Low Quiescent Current 65μA in Active Mode 1μA in Shutdown Mode
■ Switching Frequency is Non-Audible Over Entire Load Range
■ Integrated Power NPN: 350mA Current Limit (LT3494A) 180mA Current Limit (LT3494)
■ Integrated Schottky Diode
■ Integrated Output Disconnect
■ Integrated Output Dimming
■ Wide Input Range: 2.3V to 16V
■ Wide Output Range: Up to 40V
■ Tiny 8-Lead 3mm × 2mm DFN Package
Applications of LT3494EDDB#TRMPBF
■ OLED Power
■ Low Noise Power
■ MP3 Players
Environmental & Export Classifications of LT3494EDDB#TRMPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
