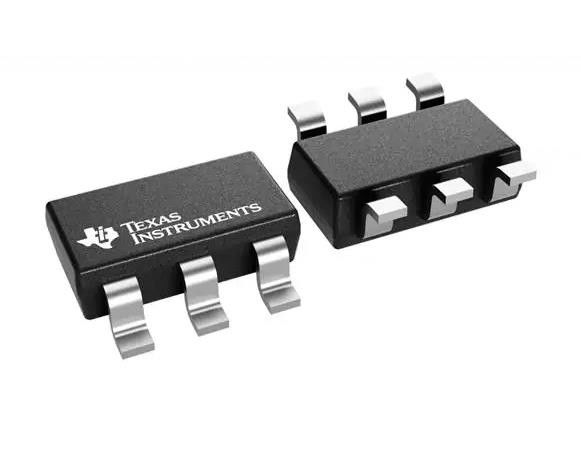

TPS54202DDCR Buck Switching Regulator IC Positive Adjustable 0.596V 1 Output 2A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54202DDCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | Eco-Mode™ | Function: | Step-Down |
|---|---|---|---|
| Output Type: | Adjustable | Voltage - Input (Min): | 4.5V |
| Number Of Outputs: | 1 | Voltage - Input (Max): | 28V |
| Voltage - Output (Min/Fixed): | 0.596V | Voltage - Output (Max): | 28V |
| Current - Output: | 2A | Frequency - Switching: | 500kHz |
| High Light: | TPS54202DDCR Buck Switching Regulator IC,Switching Regulator IC Positive Adjustable |
||
Product Description
TPS54202DDCR Buck Switching Regulator IC Positive Adjustable 0.596V 1 Output 2A
IC REG BUCK ADJ 2A TSOT23-6
Specifications of TPS54202DDCR
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Texas Instruments |
| Series | Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 0.596V |
| Voltage - Output (Max) | 28V |
| Current - Output | 2A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-23-THIN |
| Base Product Number | TPS54202 |
Features of TPS54202DDCR
• 4.5-V to 28-V wide input voltage range
• Integrated 148-mΩ and 78-mΩ MOSFETs for 2-A,continuous output current
• Low 2-μA shutdown, 45-μA quiescent current
• Internal 5-mS soft start
• Fixed 500-kHz switching frequency
• Frequency spread spectrum to reduce EMI
• Advanced Eco-mode™ pulse skip
• Peak current mode control
• Internal loop compensation
• Overcurrent protection for both MOSFETs with hiccup mode protection
• Overvoltage protection
• Thermal shutdown
• SOT-23 (6) package
Applications of TPS54202DDCR
• 12-V, 24-V distributed power-bus supply
• Industry application
– White goods
• Consumer application
– Audio
– STB, DTV
– Printer
Environmental & Export Classifications of TPS54202DDCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
