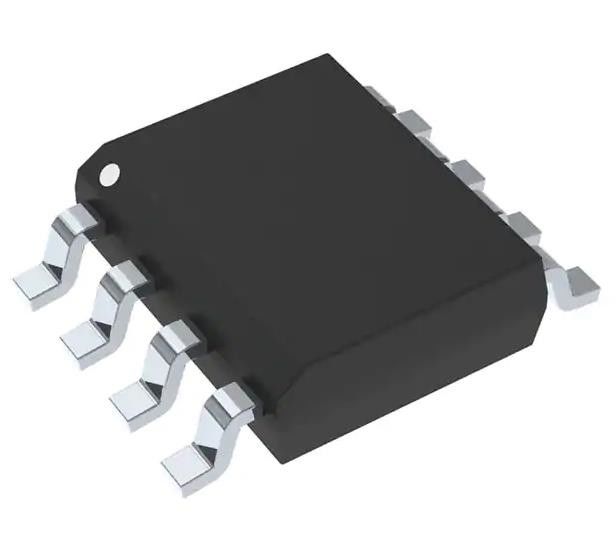

UC3843BD1R2G DC Controller IC With Flyback Regulator Up To 500kHz 7.6V ~ 30V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UC3843BD1R2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Boost, Flyback | VNumber Of Outputs: | 1 |
|---|---|---|---|
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 7.6V ~ 30V |
| Frequency - Switching: | Up To 500kHz | Duty Cycle (Max): | 96% |
| Control Features: | Frequency Control | Operating Temperature: | 0°C ~ 70°C (TA) |
| High Light: | UC3843BD1R2G DC Controller IC,500kHz DC Controller IC |
||
Product Description
UC3843BD1R2G DC Controller IC With Flyback Regulator Up to 500kHz 7.6V ~ 30V
Boost, Flyback Regulator Positive, Isolation Capable Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-SOIC
Specifications of UC3843BD1R2G
| TYPE | DESCRIPTION |
| Category | DC DC Switching Controllers |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | UC3843 |
Features of UC3843BD1R2G
• Trimmed Oscillator for Precise Frequency Control
• Oscillator Frequency Guaranteed at 250 kHz
• Current Mode Operation to 500 kHz
• Automatic Feed Forward Compensation
• Latching PWM for Cycle−By−Cycle Current Limiting
• Internally Trimmed Reference with Undervoltage Lockout
• High Current Totem Pole Output
• Undervoltage Lockout with Hysteresis
• Low Startup and Operating Current
• This is a Pb−Free and Halide−Free Device
Descriptions of UC3843BD1R2G
The UC3842B, UC3843B series are high performance fixed frequency current mode controllers.
They are specifically designed for Off−Line and DC−DC converter applications offering the designer a cost−effective solution with minimal external components.
These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.
Environmental & Export Classifications of UC3843BD1R2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
