TPS62770YFPR Boost Switching Regulator IC 1V, 4.5V (12V) 2 Output 300mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62770YFPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Min): | 2.5V | Voltage - Input (Max): | 5.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1V, 4.5V (12V) | Voltage - Output (Max): | 3V, 15V |
| Current - Output: | 300mA, 30mA, 100mA, 200mA | Frequency - Switching: | 1.05MHz |
| High Light: | Boost Switching Regulator IC,Output 300mA Switching Regulator IC,TPS62770YFPR |
||
Product Description
TPS62770YFPR Boost Switching Regulator IC 1V, 4.5V (12V) 2 Output 300mA
IC REG BUCK BST PROG DL 16DSBGA
Specifications of TPS62770YFPR
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Output Type | Programmable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V, 4.5V (12V) |
| Voltage - Output (Max) | 3V, 15V |
| Current - Output | 300mA, 30mA, 100mA, 200mA |
| Frequency - Switching | 1.05MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

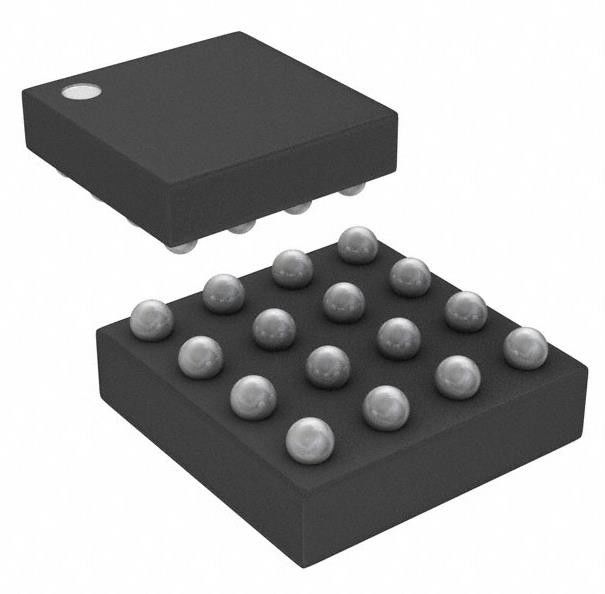

| Package / Case | 16-XFBGA, DSBGA |
| Supplier Device Package | 16-DSBGA (1.6x1.6) |
| Base Product Number | TPS62770 |
Features of TPS62770YFPR
• VIN Range 2.5 V to 5.5 V
• 370 nA Iq Step-Down Converter
– 8 Selectable Output Voltages (1.0V to 3.0V)
– 300 mA Output Current
– Output Discharge Function
• Slew Rate Controlled Load Switch with Discharge Function
• Dual Mode Step-Up Converter
– Load Disconnect
– Constant Output Voltage Adjustable up to 15 V (VFB 0.8 V) / 12 V Fixed
– LED Current Driver with PWM to Current Conversion (max VFB Voltage 200 mV @ D =100%)
• Tiny 16pin 1.58 x 1.58mm WCSP Package 0.4mm pitch
Applications of TPS62770YFPR
• Wearable and Personal Electronics
• Fitness Accessories
• Health Monitoring and Medical Accessories
Environmental & Export Classifications of TPS62770YFPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
