TPS54394RSAR Adjustable IC Switching Regulator 0.76V 2 Output 3A 16-VQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54394RSAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 2 | Voltage - Output (Max): | 7V |
|---|---|---|---|
| Current - Output: | 3A | Operating Temperature: | -40°C ~ 85°C |
| Output Type: | Adjustable | Voltage - Input (Min): | 4.5V |
| High Light: | Adjustable IC Switching Regulator,16-VQFN IC Switching Regulator,TPS54394RSAR |
||
Product Description

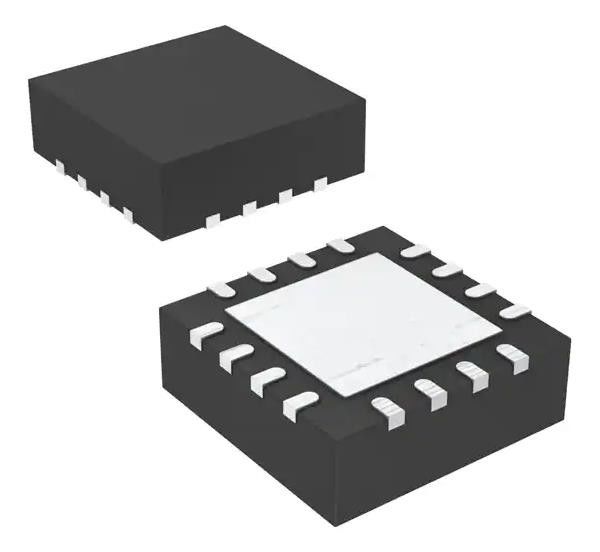

TPS54394RSAR Switching Regulator IC 0.76V 2 Output 3A 16-VQFN Exposed Pad
IC REG BUCK ADJ 3A DL 16QFN
Specifications of TPS54394RSAR
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Texas Instruments |
| Series | D-CAP2™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.76V |
| Voltage - Output (Max) | 7V |
| Current - Output | 3A |
| Frequency - Switching | 700kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Base Product Number | TPS54394 |
Features of TPS54394RSAR Switching Regulator IC
*D-CAP2TM Control Mode
- Fast Transient Response
- No External Parts Required For Loop Compensation
- Compatible with Ceramic Output Capacitors
*Wide Input Voltage Range : 4.5 V to 18 V
*Output Voltage Range : 0.76 V to 7 V
*Highly Efficient Integrated FETs Optimized for Low Duty Cycle Applications
- 90 mQ (High Side) and 60 mQ (Low Side)
*High Initial Reference Accuracy
*Supports Constant 3 A at Both Channels
*Low-Side rps(on) Loss-Less Current Sensing
*Fixed Soft Start : 1 ms
*Non-Sinking Pre-Biased Soft Start
*Powergood
*700 kHz Switching Frequency
*Cycle-by-Cycle Over-Current Limit control
*Hiccup Timer for Overload Protection
*OCL/UVLO/TSD Protections
*Adaptive Gate Drivers with Integrated Boost PMOS Switch
*ocp Constant Due To Thermally Compensatedros(on) with 4000ppm/C
*16-Pin HTSSOP,16-Pin VQFN
*Auto-Skip Eco-moderm for High Efficiency at Light Load
Applications of TPS54394RSAR
*Point-of-Load Regulation in Low Power Systems for Wide Range of Applications
- Digital TV Power Supply
- Networking Home Terminal
- Digital Set Top Box (STB)
- DVD Player/Recorder
- Gaming Consoles and Other
Environmental & Export Classifications of TPS54394RSAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
