TL2575-05IKTTR Switching Regulator IC With 5V 1 Output 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL2575-05IKTTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Min): | 4.75V | Voltage - Input (Max): | 40V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 5V | Operating Temperature: | -40°C ~ 125°C |
| Current - Output: | 1mA | Frequency - Switching: | 52KHZ |
| High Light: | TL2575-05IKTTR Switching Regulator IC,52KHZ Switching Regulator IC,TL2575-05IKTTR |
||
Product Description

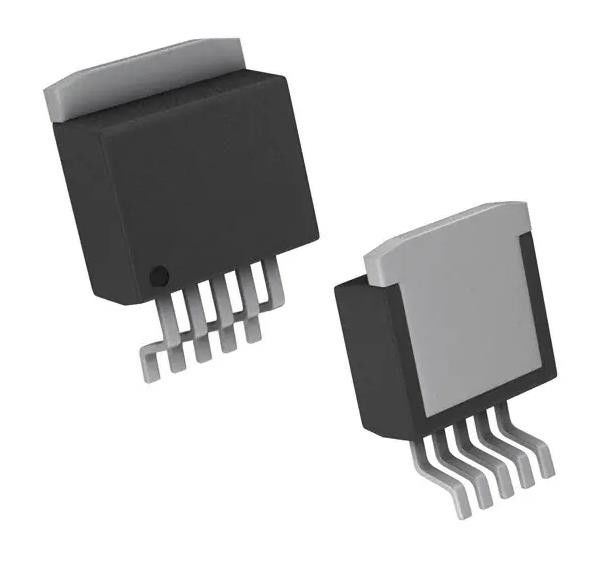

TL2575-05IKTTR Switching Regulator IC With 5V 1 Output 1A TO-263-6 D²Pak
IC REG BUCK 5V 1A TO263-5
Specifications of TL2575-05IKTTR
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - DC DC Switching Regulators |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 1A |
| Frequency - Switching | 52kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
| Base Product Number | TL2575 |
Features of TL2575-05IKTTR
• Fixed 3.3-V, 5-V, 12-V, and 15-V options with ±5% regulation (maximum) over line, load, and temperature conditions
• Adjustable option with a range of 1.23 V to 37 V (57 V for HV version) and ±4% regulation (maximum) over line, load, and temperature conditions
• Specified 1-A output current
• Wide input voltage range
– 4.75 V to 40 V (60 V for HV version)
• Requires only four external components (fixed versions) and uses readily available standard inductors
• 52-kHz (typical) fixed-frequency internal oscillator
• TTL shutdown capability with 50-μA (typical) standby current
• High efficiency
– As high as 88% (typical)
• Thermal shutdown and current-limit protection with cycle-by-cycle current limiting
Applications of TL2575-05IKTTR
• Buck and inverting buck-boost power supplies
• Motor drives and building automation
• Grid infrastructure and factory automation and control
Environmental & Export Classifications of TL2575-05IKTTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
