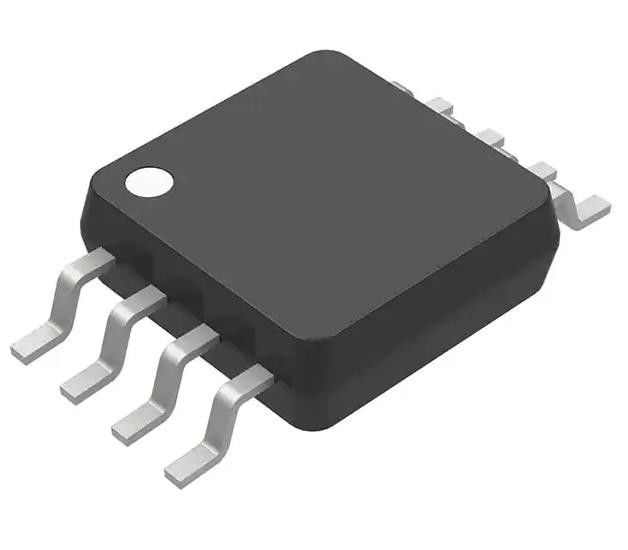

LP3982IMM-3.3/NOPB Linear Voltage Regulator Circuit 1 Output 300mA 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP3982IMM-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Max): | 6V | Voltage - Output (Min/Fixed): | 3.3V |
|---|---|---|---|
| Voltage Dropout (Max): | 0.22V @ 200mA | Current - Output: | 300mA |
| Current - Quiescent (Iq): | 270 µA | Operating Temperature: | -40°C ~ 85°C |
| Number Of Regulators: | 1 | Output Type: | Fixed |
| High Light: | Linear Voltage Regulator Circuit,8-VSSOP Voltage Regulator Circuit,LP3982IMM-3.3/NOPB |
||
Product Description
LP3982IMM-3.3/NOPB Linear Voltage Regulator IC 1 Output 300mA 8-VSSOP
IC REG LINEAR 3.3V 300MA 8VSSOP
Specifications of LP3982IMM-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.22V @ 200mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 270 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LP3982 |
Features of LP3982IMM-3.3/NOPB
*MAX8860 pin, package and spec. compatible
*LLP space saving package
*300mA guaranteed output current
*120mV typical dropout @ 300mA
*90μA typical quiescent current
*1nA typical shutdown mode
*60dB typical PSRR
*2.5V to 6V input range
*120μs typical turn-on time
*Stable with small ceramic output capacitors
*37μV RMS output voltage noise (10Hz to 100kHz)
*Over temperature/over current protection
*± 2% output voltage tolerance
Applications of LP3982IMM-3.3/NOPB
*Wireless handsets
*DSP core power
*Battery powered electronics
*Portable information appliances
Environmental & Export Classifications of LP3982IMM-3.3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
