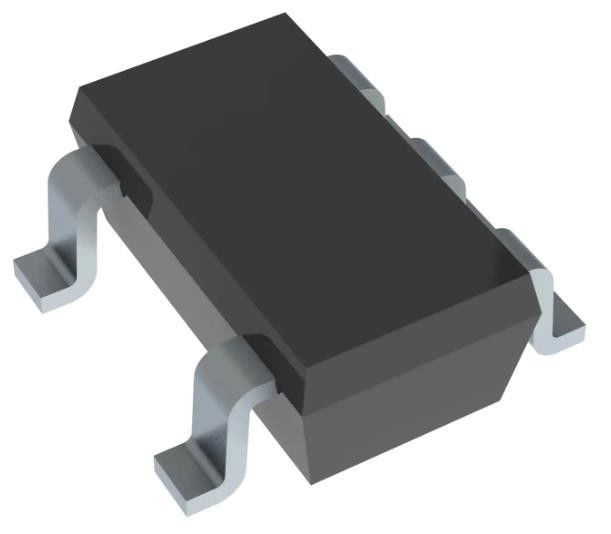

LP2992AIM5X-3.3/NOPB Linear Voltage Regulator IC 3.3V 250MA SOT23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP2992AIM5X-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 16V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 3.3V | Voltage Dropout (Max): | 0.85V @ 250mA |
| Current - Output: | 250 µA | Current - Quiescent (Iq): | 95 µA |
| Current - Supply (Max): | 4mA | Operating Temperature: | -40°C ~ 125°C |
| High Light: | SOT23-5 Voltage Regulator IC,3.3V Voltage Regulator IC,LP2992AIM5X-3.3/NOPB |
||
Product Description
LP2992AIM5X-3.3/NOPB Linear Voltage Regulator IC 3.3V 250MA SOT23-5
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-5
Specifications of LP2992AIM5X-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.85V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 95 µA |
| Current - Supply (Max) | 4 mA |
| PSRR | 45dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LP2992 |
Features of LP2992AIM5X-3.3/NOPB
• Input Voltage Range: 2.2 V to 16 V
• Output Voltage Range: 1.5 V to 5 V
• Wide Supply Voltage Range (16-V Maximum)
• Output Voltage Accuracy 1% (A Grade)
• Ultra-Low-Dropout Voltage
• Specified 250-mA Output Current
• Stable With Low-ESR Output Capacitor
• < 1-µA Quiescent Current When Shut Down
• Low Ground Pin Current at All Loads
• High Peak Current Capability
• Low ZOUT: 0.3-Ω Typical (10 Hz to 1 MHz)
• Overtemperature and Overcurrent Protection
• −40°C to +125°C Junction Temperature Range
• Smallest Possible Size (SOT-23, WSON Package)
• Requires Minimum External Components
• Custom Voltages Available
Applications of LP2992AIM5X-3.3/NOPB
• Cellular Phones
• Palmtop/Laptop Computers
• Personal Digital Assistants (PDA)
• Camcorders, Personal Stereos, Cameras
Environmental & Export Classifications of LP2992AIM5X-3.3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
