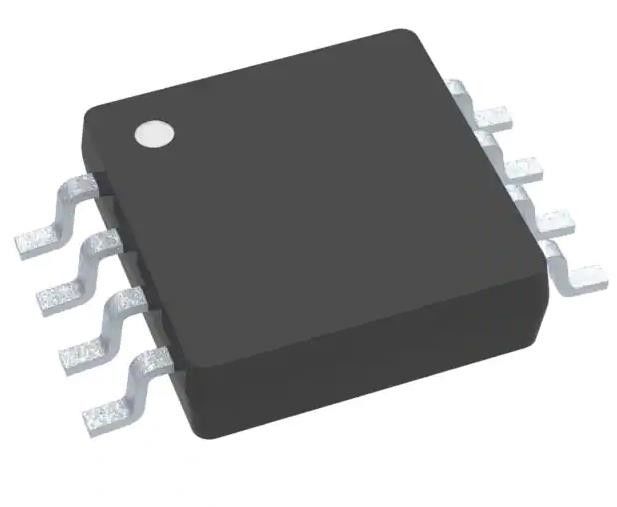

LM5009MMX/NOPB Buck Switching Regulator IC 2.5V 150mA 8-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5009MMX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Min): | 9.5V | Voltage - Input (Max): | 95V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 2.5V | Voltage - Output (Max): | 85V |
| Current - Output: | 150mA | Frequency - Switching: | None |
| Operating Temperature: | -40°C ~ 125°C (TJ) | Number Of Outputs: | 1 |
Product Description
LM5009MMX/NOPB Buck Switching Regulator IC 2.5V 150mA 8-TSSOP
Buck Switching Regulator IC Positive Adjustable 2.5V 1 Output 150mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Specifications of LM5009MMX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9.5V |
| Voltage - Input (Max) | 95V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 85V |
| Current - Output | 150mA |
| Frequency - Switching | - |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM5009 |
Features of LM5009MMX/NOPB
• Newer product: LM5163 100-V, 0.5-A synchronous buck DC/DC converter
• Integrated N-channel MOSFET
• 150-mA output current capability
• Ultra-fast transient response
• No loop compensation required
• VIN feedforward provides constant operating frequency
• Switching frequency can exceed 600 kHz
• Highly efficient operation
• 2% accurate 2.5-V feedback from –40°C to +125°C
• Internal start-up regulator
• Intelligent current limit protection
• External shutdown control
• Thermal shutdown
• 8-pin VSSOP and thermally enhanced 8-pin WSON packages
Applications of LM5009MMX/NOPB
• Heat sink eliminator for classic linear regulator applications
• 12-V, 24-V, 36-V, and 48-V rectified AC systems
• Non-isolated AC mains charge-coupled supplies
• LED current source
Environmental & Export Classifications of LM5009MMX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
