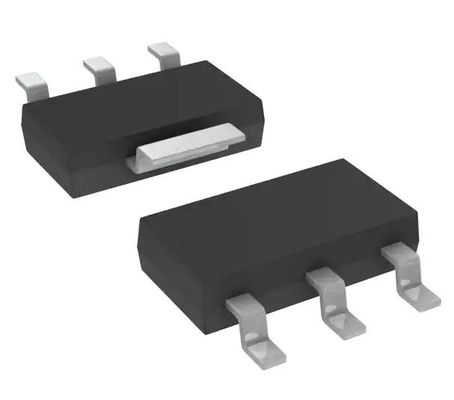

LM317AEMP/NOPB Linear Voltage Regulator IC 1 Output 1.5A SOT-223-4
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM317AEMP/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Max): | 40V | Voltage - Output (Min/Fixed): | 1.25 V |
|---|---|---|---|
| Voltage - Output (Max): | 37 V | Voltage Dropout (Max): | None |
| Current - Output: | 1.5A | Current - Quiescent (Iq): | 10mA |
Product Description
LM317AEMP/NOPB Linear Voltage Regulator IC 1 Output 1.5A SOT-223-4
IC REG LIN POS ADJ 1.5A SOT223-4
Specifications of LM317AEMP/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 80dB ~ 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Base Product Number | LM317 |
Features of LM317AEMP/NOPB
• For a newer drop-in alternative, see the LM317
• Typical 0.005%/V line regulation
• 1% output voltage tolerance
• 1.5-A output current
• Adjustable output down to 1.25 V
• Input-output differential up to 40 V
• Current limit constant with temperature
• No output capacitor required
• Short-circuit protected output
• −40°C to 125°C operating temperature range
Applications of LM317AEMP/NOPB
• Automotive LED lighting
• Battery chargers
• Post regulation for switching supplies
• Constant-current regulator
• Microprocessor supplies
Environmental & Export Classifications of LM317AEMP/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
