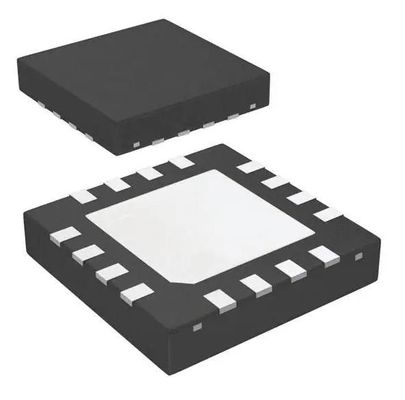

LM26420XSQ/NOPB Switching Regulator IC REG BUCK ADJ 2A DL 16WQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM26420XSQ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Min): | 3V | Voltage - Input (Max): | 5.5 V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 0.8 V | Voltage - Output (Max): | 4.5 V |
| Current - Output: | 2A | Frequency - Switching: | 2.2MHz |
Product Description
LM26420XSQ/NOPB Switching Regulator IC REG BUCK ADJ 2A DL 16WQFN
Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 2A 16-WQFN Exposed Pad
Specifications of LM26420XSQ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 4.5V |
| Current - Output | 2A |
| Frequency - Switching | 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
| Base Product Number | LM26420 |
Features of LM26420XSQ/NOPB
• Compliant with CISPR25 Class 5 Conducted Emissions
• Input Voltage Range of 3 V to 5.5 V
• Output Voltage Range of 0.8 V to 4.5 V
• 2-A Output Current per Regulator
• High Switching Frequency: 2.2 MHz (LM26420X) 0.55 MHz (LM26420Y)
• 0.8 V, 1.5% Internal Voltage Reference
• Internal Soft Start
• Independent Power Good and Precision Enable for Each Output
• Current Mode, PWM Operation
• Thermal Shutdown
• Overvoltage Protection
• Start-up into Prebiased Output Loads
• Regulators are 180° Out of Phase
• Create a Custom Design Using the LM26420 With the WEBENCH® Power Designer
Applications of LM26420XSQ/NOPB
• Local 5 V to Vcore of FPGAs
• Core Power in HDDs and Set-Top Boxes
• USB Powered Devices
• Powering Core and I/O Voltages for CPUs
Environmental & Export Classifications of LM26420XSQ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
