CY54FCT245ATDMB IC Chip 1 Element 8 Bit Per Element 3-State Output 20 CDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CY54FCT245ATDMB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Elements: | 1 | Number Of Bits Per Element: | 8 |
|---|---|---|---|
| Input Type: | - | Output Type: | 3-State |
| Current - Output High, Low: | 12mA, 48mA | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -55°C ~ 125°C (TA) | Supplier Device Package: | 20-CDIP |
| High Light: | CY54FCT245ATDMB IC Chip,20 CDIP IC Chip,CY54FCT245ATDMB IC |
||
Product Description

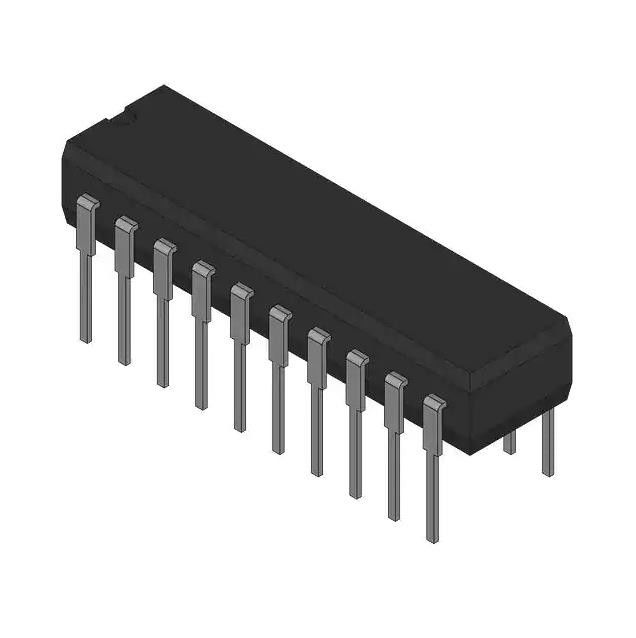

CY54FCT245ATDMB IC Chip 1 Element 8 Bit per Element 3-State Output 20-CDIP
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-CDIP
Specifications of CY54FCT245ATDMB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 54FCT |
| Package | Bulk |
| Product Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 48mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CDIP |
| Base Product Number | 54FCT245 |
Features of CY54FCT245ATDMB
* Function, Pinout, and Drive Compatible With FCT and F Logic
* Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
* Edge-Rate Control Circuitry fo Significantly Improved Noise Characteristics
* Ioff Supports Partial-Power-Down Mode Operation
* ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
* Matched Rise and Fall Times
* Fully Compatible With TTL Input and Output Logic Levels
* CY54FCT245T
– 48-mA Output Sink Current
12-mA Output Source Current
* CY74FCT245T
– 64-mA Output Sink Current
32-mA Output Source Current
* 3-State Outputs
Descriptions of CY54FCT245ATDMB
The ’FCT245T devices contain eight noninverting bidirectional buffers with 3-state outputs and are intended for bus-oriented applications.
The transmit/receive (T/R) input determines the direction of data flow through these bidirectional transceivers.
Transmit (active high) enables data from A ports to B ports. The output enable (OE), when high, disables both the A and B ports by putting them in the high-impedance state.
These devices are fully specified for partial-power-down applications using I off. The I off circuitry disables the
outputs, preventing damaging current backflow through the device when it is powered down.
