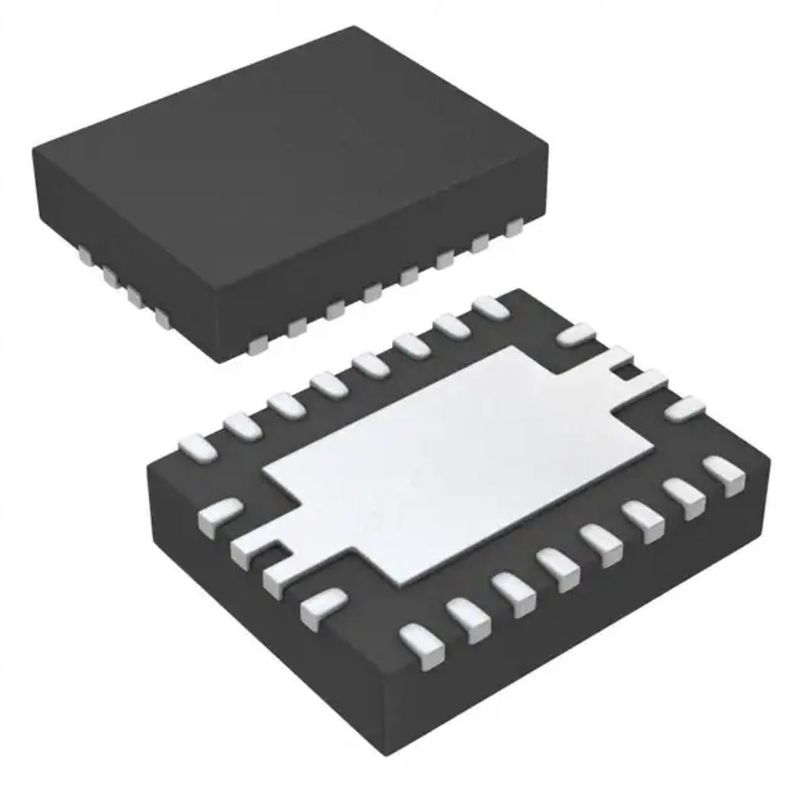

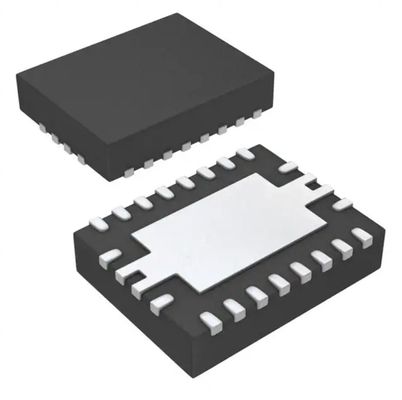

TPS61088QRHLRQ1 DIP IC Socket PWR MGMT Ic Switching Regulator
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61088QRHLRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 10A | Frequency - Switching: | 200kHz ~ 2.2MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 20-VFQFN Exposed Pad |
| Supplier Device Package: | 20-VQFN (3.5x4.5) | Base Product Number: | TPS61088 |
| High Light: | TPS61088QRHLRQ1 DIP IC,DIP IC Socket PWR MGMT,PWR MGMT Ic Switching Regulator |
||
Product Description
TPS61088QRHLRQ1 Dip Ic Sockets Ic Pwr Mgmt Switching Regulator
Boost Switching Regulator IC Positive Adjustable 4.5V 1 Output 10A 20-VFQFN Exposed Pad
Specifications of TPS61088QRHLRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 4.5V |
| Voltage - Output (Max) | 12.6V |
| Current - Output | 10A |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| Base Product Number | TPS61088 |
Features of TPS61088QRHLRQ1
• AEC-Q100 Qualified forAutomotive Applications:
– Device TemperatureGrade 1: –40°C to+125°C, TA
• Input Voltage Range: 2.7to 12 V
• Output Voltage Range: 4.5 to 12.6 V
• 10-A Switch Current
• Higher than 90%Efficiency at VIN = 5 V,VOUT = 9 V, and IOUT = 3 A
• Mode Selection BetweenPFM Mode and ForcedPWM Mode at Light Load
• 1-µA Current into VINPin during Shutdown
• Resistor-ProgrammableSwitch Peak Current Limit
• Adjustable SwitchingFrequency: 200 kHz to 2.2MHz
• Programmable Soft Start
• Output OvervoltageProtection at 13.2 V
• Cycle-by-CycleOvercurrent Protection
• Thermal Shutdown
• 4.50-mm × 3.50-mm 20-Pin VQFN Package
• Create a Custom DesignUsing the TPS61088-Q1with the WEBENCH PowerDesigner
Applications of TPS61088QRHLRQ1
• Automotive E-call
• Automotive Smart Antenna
• Automotive Power overCoax Applications
Environmental & Export Classifications of TPS60400DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
