LM60440ARPKR 36V 4A Sync Buck Voltage Regulator IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM60440ARPKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 3.8V | Voltage - Input (Max): | 36V |
| High Light: | LM60440ARPKR 36v,Sync Buck Voltage Regulator IC,LM60440ARPKR Voltage Regulator IC |
||
Product Description
LM60440ARPKR General Purpose Relays36v 4a Sync Buck Regulator
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 4A 13-PowerWFQFN
Specifications of LM60440ARPKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.8V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 24V |
| Current - Output | 4A |
| Frequency - Switching | 400kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |

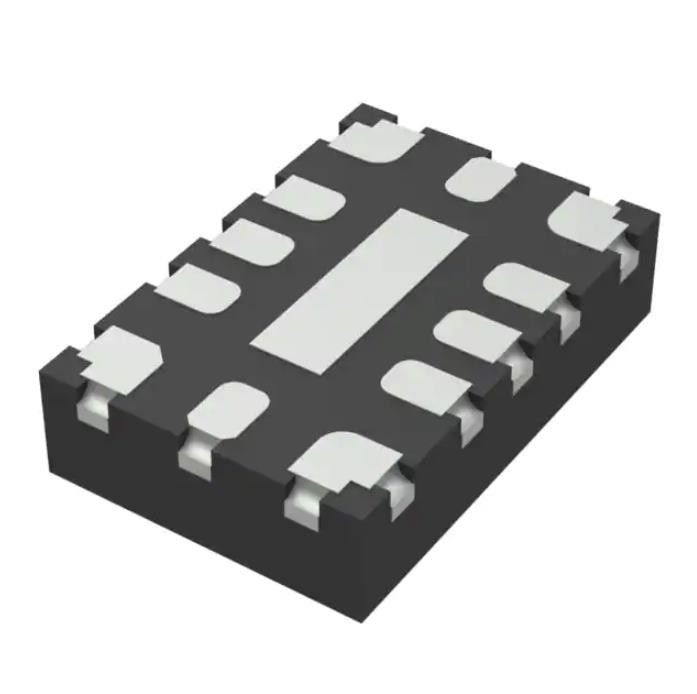

| Package / Case | 13-PowerWFQFN |
| Supplier Device Package | 13-WQFN-HR (3x2) |
| Base Product Number | LM60440 |
FEATURES of LM60440ARPKR
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• Low EMI and switching noise
– Meets CISPR22 class 5 standard
– Enhanced QFN package minimizes parasitic inductance and switch node ringing
• Configured for rugged industrial applications
– Standard QFN footprint: single large thermal pad and all pins accessible from perimeter
– Pin compatible variants:
– LM60440 (36 V, 4 A)
– LM60430 (36 V, 3 A)
– Junction temperature range –40°C to +150°C
– Frequency: 400 kHz, 1 MHz
– Output voltage range: 1 V to 24 V
• High efficiency power conversion at all loads
– Peak efficiency 95%
– 90% PFM efficiency at 10-mA, 12 VIN, 5 VOUT
– Low operating quiescent current of 25 µA
• Create a custom design using the LM60440 with the WEBENCH® Power Designer
Applications of LM60440ARPKR
• Industrial PC and CPU (PLC controller)
• Servo drive and AC drive control module
• Medical and instrumentation applications
Environmental & Export Classifications of LM60440ARPKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
