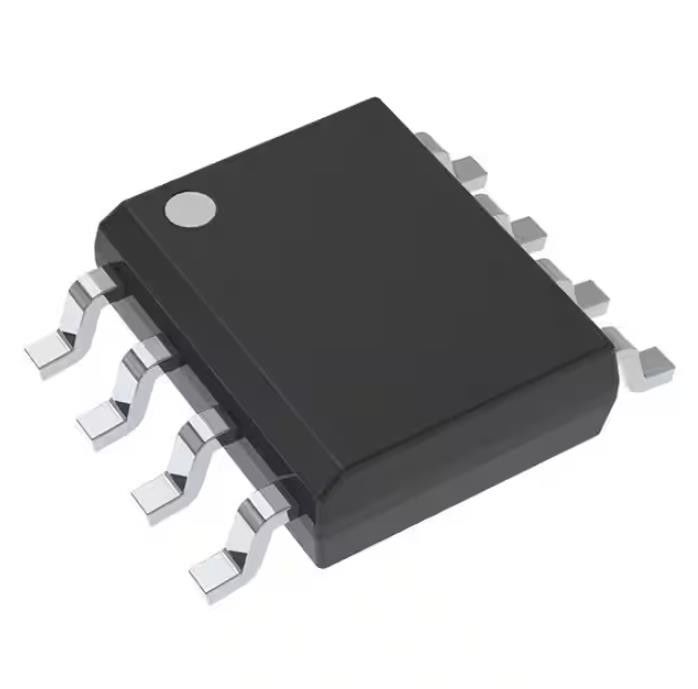

LM5101AMX General Purpose Relays Ic Gate Drvr Half-Bridge 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5101AMX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Obsolete | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Driven Configuration: | Half-Bridge | Channel Type: | Independent |
| Number Of Drivers: | 2 | Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 9V ~ 14V | Logic Voltage - VIL, VIH: | 2.3V, - |
Product Description
LM5101AMX General Purpose Relays Ic Gate Drvr Half-Bridge 8soic
Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
Specifications of LM5101AMX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Digi-Key Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 2.3V, - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 430ns, 260ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM5101 |
FEATURES of LM5101AMX
• Drives Both a High-side and Low-side NChannel MOSFETs
• Independent High and Low Driver Logic Inputs
• Bootstrap Supply Voltage up to 118V DC
• Fast Propagation Times (25 ns Typical)
• Drives 1000 pF Load with 8 ns Rise and Fall Times
• Excellent Propagation Delay Matching (3 ns typical)
• Supply Rail Under-voltage Lockout
• Low Power Consumption
• Pin Compatible with HIP2100/HIP2101
Applications of LM5101AMX
• Current Fed Push-pull Converters
• Half and Full Bridge Power Converters
• Synchronous Buck Converters
• Two Switch Forward Power Converters
• Forward with Active Clamp Converters
Environmental & Export Classifications of LM5101AMX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
