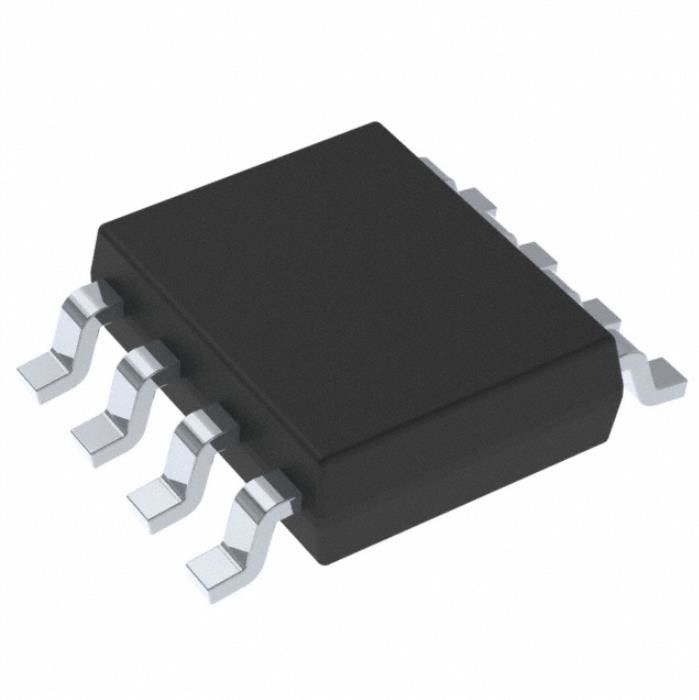

LM5017MR/NOPB General Purpose Relays Ic Reg Buck Adj 600ma 8sopwr
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5017MR/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Function: | Step-Down | Output Configuration: | Positive |
| Topology: | Buck | Output Type: | Adjustable |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 7.5V |
Product Description
Buck Switching Regulator IC Positive Adjustable 1.225V 1 Output 600mA 8-PowerSOIC (0.154", 3.90mm Width)
Specifications of LM5017MR/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 100V |
| Voltage - Output (Min/Fixed) | 1.225V |
| Voltage - Output (Max) | 90V |
| Current - Output | 600mA |
| Frequency - Switching | Adj to 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | LM5017 |
FEATURES of LM5017MR/NOPB
• Wide 7.5-V to 100-V input range
• Integrated 100-V high-side and low-side switches
• No schottky required
• Constant on-time control
• No loop compensation required
• Ultra-fast transient response
• Nearly constant operating frequency
• Intelligent peak current limit
• Adjustable output voltage from 1.225 V
• Precision 2% feedback reference
• Frequency adjustable to 1 MHz
• Adjustable undervoltage lockout (UVLO)
• Remote shutdown
• Thermal shutdown
• Packages:
– WSON-8
– SO PowerPAD™-8
• Create a custom regulator design using WEBENCH® Power Designer
Applications of LM5017MR/NOPB
• Industrial programmable logic controllers (PLC)
• Smart power meters
• Telecom primary and secondary side bias
• Low-power isolated DC/DC (Fly-Buck™)
Environmental & Export Classifications of LM5017MR/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
