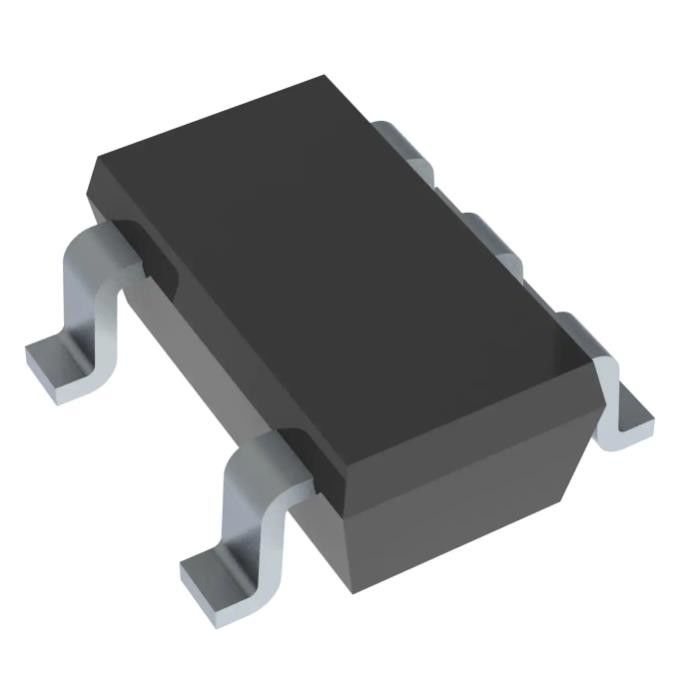

LM4120AIM5-3.3/NOPB General Purpose Relays Ic Vref Series 0.2% Sot23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM4120AIM5-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Reference Type: | Series |
|---|---|---|---|
| Output Type: | Fixed | Voltage - Output (Min/Fixed): | 3.3V |
| Current - Output: | 5 MA | Tolerance: | ±0.2% |
| Temperature Coefficient: | 50ppm/°C | Noise - 0.1Hz To 10Hz: | 20µVp-p |
Product Description
LM4120AIM5-3.3/NOPB General Purpose Relays Ic Vref Series 0.2% Sot23-5
Series Voltage Reference IC Fixed 3.3V V ±0.2% 5 mA SOT-23-5
Specifications of LM4120AIM5-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 3.3V |
| Current - Output | 5 mA |
| Tolerance | ±0.2% |
| Temperature Coefficient | 50ppm/°C |
| Noise - 0.1Hz to 10Hz | 20µVp-p |
| Noise - 10Hz to 10kHz | 36µVp-p |
| Voltage - Input | 2V ~ 12V |
| Current - Supply | 275µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LM4120 |
FEATURES of LM4120AIM5-3.3/NOPB
• Small SOT23-5 Package
• Low Dropout Voltage: 120 mV Typical at 1 mA
• High Output Voltage Accuracy: 0.2%
• Source and Sink Current Output: ±5 mA
• Supply Current: 160 μA Typical
• Low Temperature Coefficient: 50 ppm/°C
• Enable Pin
• Fixed Output Voltages: 1.8, 2.048, 2.5, 3, 3.3,4.096, and 5 V
• Industrial Temperature Range: −40°C to 85°C
• (For Extended Temperature Range, −40°C to125°C, Contact TI)
Applications of LM4120AIM5-3.3/NOPB
• Portable, Battery-Powered Equipment
• Instrumentation and Process Control
• Automotive and Industrial
• Test Equipment
• Data Acquisition Systems
• Precision Regulators
• Battery Chargers
• Base Stations
• Communications
• Medical Equipment
Environmental & Export Classifications of LM4120AIM5-3.3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
