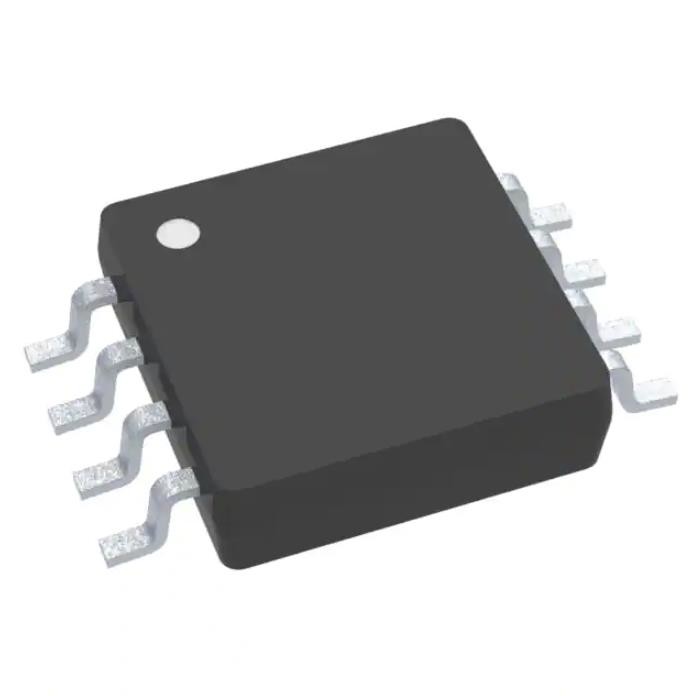

LM3478MM/NOPB General Purpose Relays Ic Reg Ctrlr Mult Top 8vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3478MM/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Type: | Transistor Driver |
|---|---|---|---|
| Function: | Step-Up, Step-Up/Step-Down | Output Configuration: | Positive |
| Topology: | Boost, Flyback, SEPIC | Number Of Outputs: | 1 |
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 2.97V ~ 40V |
Product Description
LM3478MM/NOPB General Purpose Relays Ic Reg Ctrlr Mult Top 8vssop
Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-VSSOP
Specifications of LM3478MM/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 40V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM3478 |
Features of LM3478MM/NOPB
• 8-lead VSSOP-8 and SOIC-8 packages
• Internal Push-Pull Driver With 1-A Peak CurrentCapability
• Current Limit and Thermal Shutdown
• Frequency Compensation Optimized With aCapacitor and a Resistor
• Internal Soft Start
• Current Mode Operation
• Undervoltage Lockout With Hysteresis
• Create a Custom Design Using the LM3478 withthe WEBENCH Power Designer
Applications of LM3478MM/NOPB
• Distributed Power Systems
• Battery Chargers
• Offline Power Supplies
• Telecom Power Supplies
• Automotive Power Systems
• Wide Supply Voltage Range of 2.97 V to 40 V
• 100-kHz to 1-MHz Adjustable Clock Frequency
• 2.5% (Over Temperature) Internal Reference
• 10-µA Shutdown Current (Over Temperature)
• Distributed Power Systems
• Battery Chargers
• Offline Power Supplies
• Telecom Power Supplies
• Automotive Power Systems
• Wide Supply Voltage Range of 2.97 V to 40 V
• 100-kHz to 1-MHz Adjustable Clock Frequency
• 2.5% (Over Temperature) Internal Reference
• 10-µA Shutdown Current (Over Temperature)
Environmental & Export Classifications of LM3478MM/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
