LM2674M-5.0 General Purpose Relays Ic Reg Buck 5v 500ma 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2674M-5.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Not For New Designs |
|---|---|---|---|
| Function: | Step-Down | Output Configuration: | Positive |
| Topology: | Buck | Output Type: | Fixed |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 6.5V |
Product Description
LM2674M-5.0 General Purpose Relays Ic Reg Buck 5v 500ma 8soic

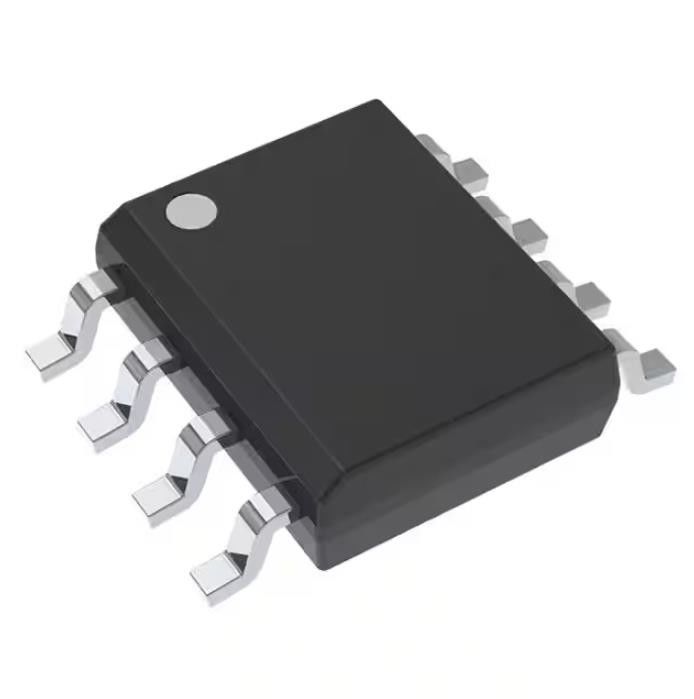

Buck Switching Regulator IC Positive Fixed 5V 1 Output 500mA 8-SOIC (0.154", 3.90mm Width)
Specifications of LM2674M-5.0
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tube |
| Product Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6.5V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 500mA |
| Frequency - Switching | 260kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM2674 |
Features of LM2674M-5.0
• Efficiency up to 96%
• Available in 8-Pin SOIC, PDIP, and 16-Pin WSON Packages
• Simple and Easy to Design With
• Requires Only 5 External Components
• Uses Readily Available Standard Inductors
• 3-V, 5-V, 12-V, and Adjustable Output Versions
• Adjustable Version Output Voltage Range: 1.21 V to 37 V
• 1.5% Maximum Output Voltage Tolerance Over Line and Load Conditions
• Ensured 500-mA Output Load Current
• 0.25-Ω DMOS Output Switch
• Wide Input Voltage Range: 8 V to 40 V
• 260-kHz Fixed Frequency Internal Oscillator
• TTL Shutdown Capability, Low Power Standby Mode
• Thermal Shutdown and Current Limit Protection
application of LM2674M-5.0
• Simple High Efficiency ( 90%) Step-Down (Buck) Regulators
• Efficient Preregulator for Linear Regulators
• Positive-to-Negative Converters
Environmental & Export Classifications of LM2674M-5.0
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
