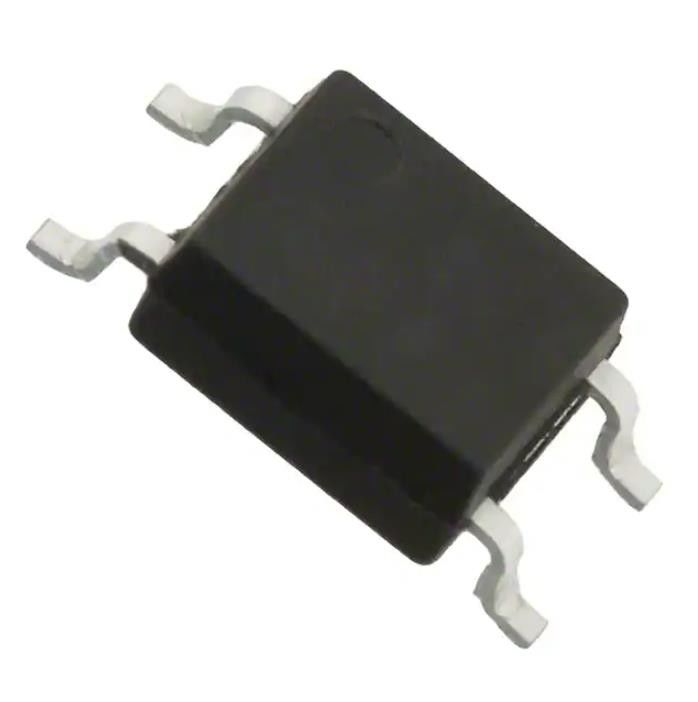

HCPL-181-00AE Optoiso Switching Regulator IC 3.75KV TRANS 4MINIFLAT
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HCPL-181-00AE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Channels: | 1 |
|---|---|---|---|
| Voltage - Isolation: | 3750Vrms | Current Transfer Ratio (Min): | 80% @ 5mA |
| Current Transfer Ratio (Max): | 160% @ 5mA | Output Type: | Transistor |
| Rise / Fall Time (Typ): | 4µs, 3µs | Input Type: | DC |
| High Light: | HCPL-181-00AE Optoiso,3.75KV TRANS 4MINIFLAT,Optoiso Switching Regulator |
||
Product Description
HCPL-181-00AE Purpose Relays Optoiso 3.75kv Trans 4miniflat
HCPL-181-00AE Purpose Relays Optoiso 3.75kv Trans 4miniflat
Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat
Specifications of HCPL-181-00AE
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | Broadcom Limited |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Current Transfer Ratio (Max) | 160% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-Mini-Flat |
| Base Product Number | HCPL-181 |
Features of HCPL-181-00AE
• Current transfer ratio (CTR: minimum 50% at IF = 5 mA, VCE = 5V)
• High input-output isolation voltage (Viso = 3750 Vrms)
• High collector-emitter voltage (VCEO = 80V)
• Response time (tr: typical, 4 μs at VCE = 2V, IC = 2 mA, RL = 100• )
• Mini-flat package (2.0-mm profile) in tape and reel package
• UL approved
• CSA approved
• IEC 60747-5-5 approved
• Options available:
– IEC 60747-5-5 app
Applications of HCPL-181-00AE
• I/O interfaces for computers
• System appliances, measuring instruments
• Signal transmission between circuits of different potentials and impedances
• Feedback circuit in power supply
Environmental & Export Classifications of HCPL-181-00AE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
