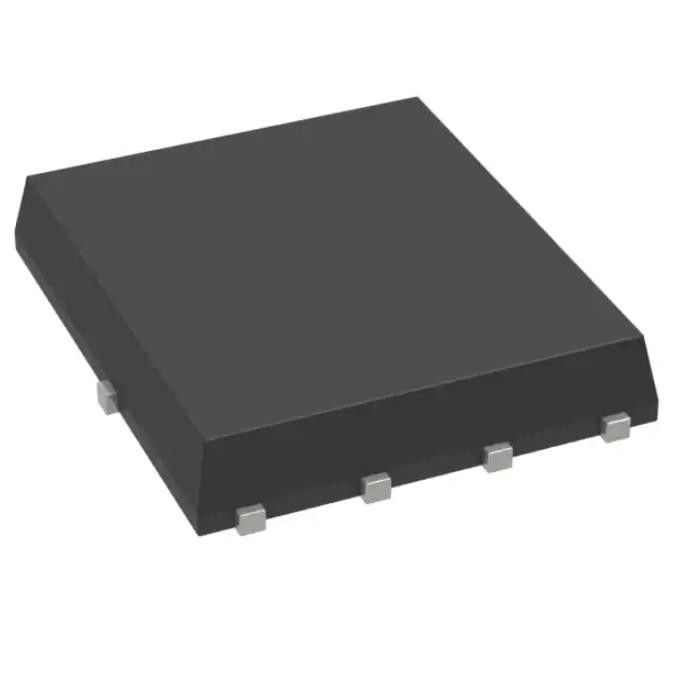

FDWS86380-F085 Mosfet IC Circuit Chip N-CH 80V 50A POWER56
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FDWS86380-F085 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | N-Channel |
|---|---|---|---|
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 80 V |
| Current - Continuous Drain (Id) @ 25°C: | 50A (Tc)USART | Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Rds On (Max) @ Id, Vgs: | 13.4mOhm @ 50A, 10V | Vgs(th) (Max) @ Id: | 4V @ 250µA |
| High Light: | FDWS86380-F085,Mosfet IC Circuit Chip,N-CH 80V 50A POWER56 |
||
Product Description
FDWS86380-F085 General Purpose Relays Mosfet N-Ch 80v 50a Power56
N-Channel 80 V 50A (Tc) 75W (Tj) Surface Mount Power56
Specifications of FDWS86380-F085
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101, PowerTrench® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 13.4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1440 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 75W (Tj) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Power56 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | FDWS86380 |
Features of FDWS86380-F085
• Typ RDS(on) = 11.3 m at VGS = 10 V; ID = 50 A
• Typ Qg(tot) = 20 nC at VGS = 10 V; ID = 50 A
• UIS Capability
• Wettable Flanks for Automatic Optical Inspection (AOI)
• AEC−Q101 Qualified and PPAP Capable
• This Device is Pb−Free, Halogen Free/BFR Free and is RoHS Compliant
Applications of FDWS86380-F085
• Automotive Engine Control
• PowerTrain Management
• Solenoid and Motor Drivers
• Electronic Steering
• Integrated Starter/Alternator
• Distributed Power Architectures and VRM
• Primary Switch for 12 V Systems
Environmental & Export Classifications of FDWS86380-F085
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
