E-L9823013TR General Purpose Relays Ic Pwr Driver N-Channel 1:8 24so
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | E-L9823013TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Switch Type: | General Purpose |
|---|---|---|---|
| Number Of Outputs: | 8 | Ratio - Input:Output: | 0.047222222 |
| Output Configuration: | Low Side | Output Type: | N-Channel |
| Interface: | SPI | Voltage - Load: | 4.5V ~ 5.5V |
Product Description

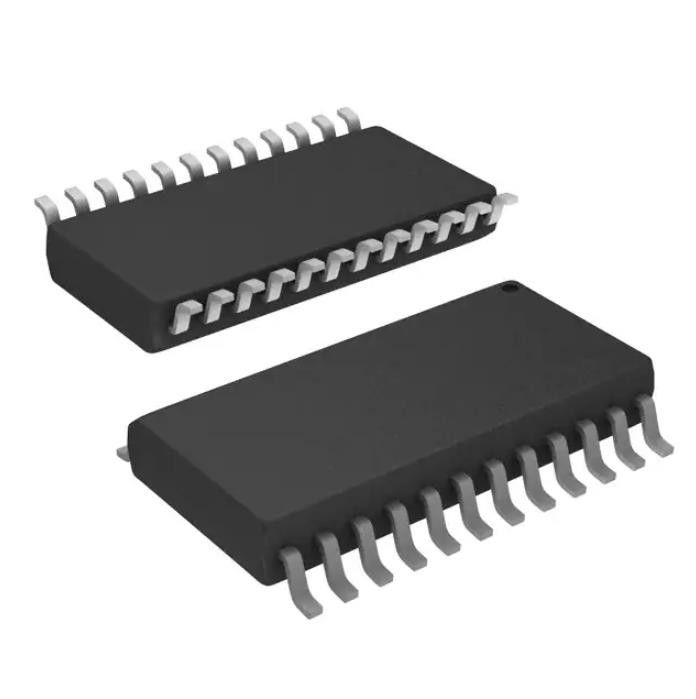

Power Switch/Driver 1:8 N-Channel 500mA 24-SO
Specifications of E-L9823013TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 8 |
| Ratio - Input:Output | 0.047222222 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 800mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SO |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Base Product Number | E-L9823 |
Features of E-L9823013TR
• Outputs current capability up to 0.5 A
• Cascadable SPI control for outputs
• Reset function with reset signal or nundervoltage at VDD
• Programmable intrinsic output voltage clamping at typ. 50 V for inductive switching
• Overcurrent shutdown with latch-off for every write cycle (SFPD = low)
• Independent thermal shutdown of outputs (SOA Protection)
• Output status data available on the SPI using 8-bit I/O protocol up to 3.0 MHz
• Low standby current with reset = low (typ. 35 µA @ VDD)
• Open load detection (outputs off)
• Single VDD logic supply
• High EMS immunity and low EME (controlled output slopes)
• Full functionality of the remaining device at negative voltage drop on outputs (-1.5 V or-3.0 A)
• Output mode programmable for sustained current limit or shutdown
