DS90UH940TNKDRQ1 General Purpose Relays Ic Deserial Hdmi To Fpd 64wqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90UH940TNKDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Deserializer | Data Rate: | 3.36Gbps |
|---|---|---|---|
| Input Type: | FPD-Link III, LVDS | Output Type: | CSI-2, MIPI |
| Number Of Inputs: | 3 | Number Of Outputs: | 2 |
| Voltage - Supply: | 1.2V, 1.8V, 3.3V | Operating Temperature: | -40°C ~ 105°C (TA) |
Product Description
DS90UH940TNKDRQ1 General Purpose Relays Ic Deserial Hdmi To Fpd 64wqfn

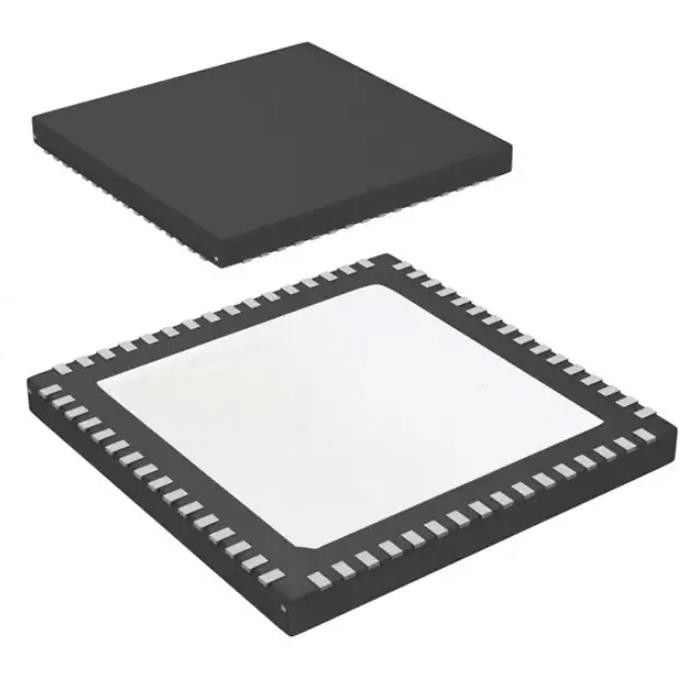

3.36Gbps Deserializer 3 Input 2 Output 64-WQFN (9x9)
Specifications of DS90UH940TNKDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Serializers, Deserializers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at Digi-Key |
| Function | Deserializer |
| Data Rate | 3.36Gbps |
| Input Type | FPD-Link III, LVDS |
| Output Type | CSI-2, MIPI |
| Number of Inputs | 3 |
| Number of Outputs | 2 |
| Voltage - Supply | 1.2V, 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-WFQFN Exposed Pad |
| Supplier Device Package | 64-WQFN (9x9) |
| Base Product Number | DS90UH |
Features of DS90UH940TNKDRQ1
• AEC-Q100 qualified with the following results:
– Device temperature grade 2: –40°C to +105°C ambient operating temperature
• Supports pixel clock frequency up to 170 MHz for WUXGA (1920×1200) and 1080p60 resolutions With 24-Bit color depth
• 1-Lane or 2-Lane FPD-link III interface with deskew capability
• MIPI® D-PHY / CSI-2 transmitter
– CSI-2 output ports with selectable 2- or 4- lane operation, up to 1.3 Gbps each lane
– Video formats: RGB888/666/565, YUV422/420, RAW8/10/12
– Programmable virtual channel identifier
• Integrated HDCP cipher engine with on-chip key storage
• Four high-speed GPIOs (up to 2 Mbps each)
• Adaptive receive equalization
– Compensates for channel insertion loss of up to –15.3 dB at 1.7 GHz
– Provides automatic temperature and cable aging compensation
• SPI control interfaces up to 3.3 Mbps
• I2C (Master/Slave) With 1-Mbps fast-mode plus
• Supports 7.1 multiple I2S (4 data) channels
Applications of DS90UH940TNKDRQ1
• Automotive infotainment:
– Central information displays
– Rear seat entertainment systems
– Digital instrument clusters
Environmental & Export Classifications of DS90UH940TNKDRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
