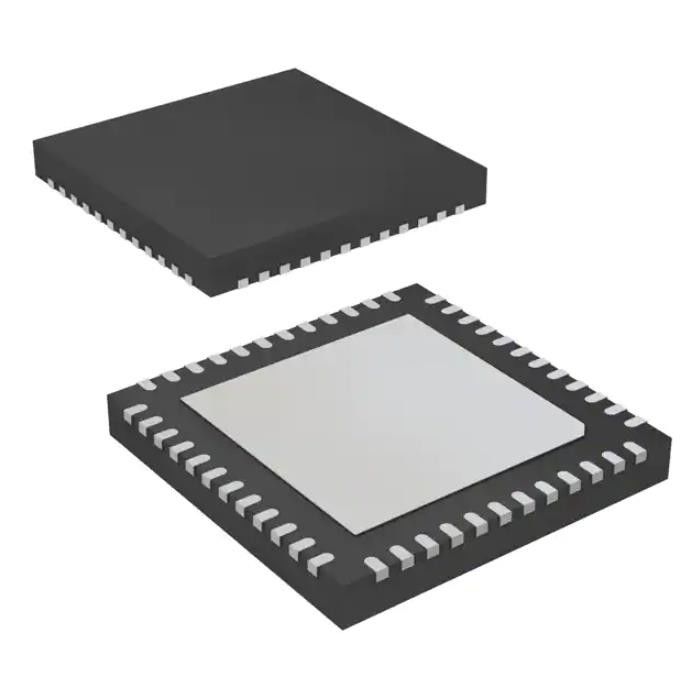

DS90UB934TRGZRQ1 General Purpose Relays Ic Deserializer 12 Bit 48vqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90UB934TRGZRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Deserializer |
|---|---|---|---|
| Data Rate: | 1.87Gbps | Input Type: | FPD-Link III, LVDS |
| Output Type: | LVCMOS | Number Of Inputs: | 1 |
| Number Of Outputs: | 12 | Voltage - Supply: | 1.71V ~ 1.89V |
Product Description
DS90UB934TRGZRQ1 General Purpose Relays Ic Deserializer 12 Bit 48vqfn
1.87Gbps Deserializer 1 Input 12 Output 48-VQFN (7x7)
Specifications of DS90UB934TRGZRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Serializers, Deserializers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Deserializer |
| Data Rate | 1.87Gbps |
| Input Type | FPD-Link III, LVDS |
| Output Type | LVCMOS |
| Number of Inputs | 1 |
| Number of Outputs | 12 |
| Voltage - Supply | 1.71V ~ 1.89V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Base Product Number | DS90UB934 |
Features of DS90UB934TRGZRQ1
• Qualified for automotive applications
• AEC-Q100 qualified for automotive applications with the following results:
– Device temperature grade 2: –40°C to +105°C ambient operating temperature
– Device HBM ESD classification level ±2 kV
– Device CDM ESD classification level C4
• Operates up to 100 MHz in 12-bit mode to support 1 MP/60 fps and 2 MP/30 fps imagers as well as satellite RADAR
• Configurable 12-bit parallel CMOS compatible with DS90UB913A/933 serializers
• Adaptive equalization compensates for cable aging and degradation effects
• Ultra-low latency bi-directional control data channel with data protection
• Cable link detect diagnostics
• Supports Power-over-Coax operation (PoC)
• ISO 10605 and IEC 61000-4-2 ESD compliant
• Low radiated and conductive emissions
• BIST (Built-In Self-Test)
Applications of DS90UB934TRGZRQ1
• Automotive
– Rear-View Cameras (RVC)
– Surround View Systems (SVS)
– Camera Monitor Systems (CMS)
– Forward Vision Cameras (FC)
– Driver Monitoring Systems (DMS)
– Satellite RADAR Modules
• Security and Surveillance Cameras
• Industrial and Medical Imaging
Environmental & Export Classifications of DS90UB934TRGZRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
