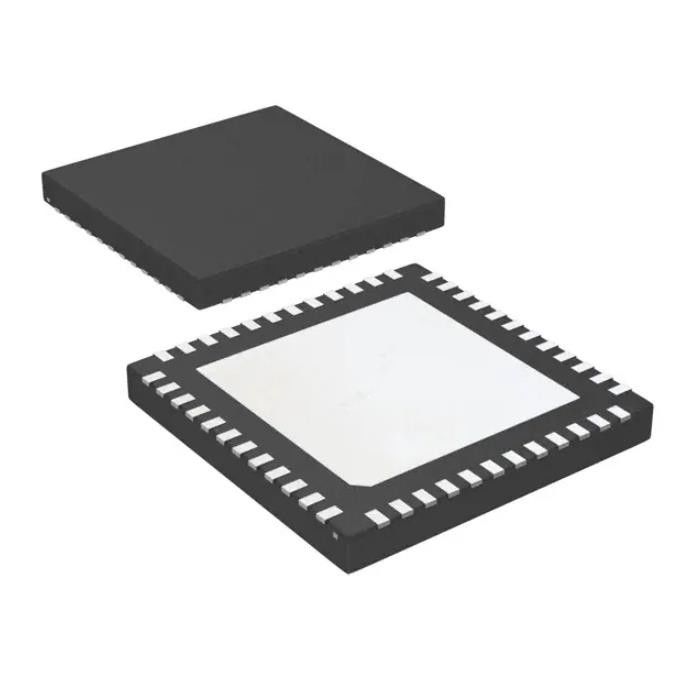

DS90UB928QSQX/NOPB General Purpose Relays Ic Deserializer Lvds 48wqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90UB928QSQX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Deserializer |
|---|---|---|---|
| Data Rate: | 2.975Gbps | Input Type: | FPD-Link III, LVDS |
| Output Type: | LVDS | Number Of Inputs: | 1 |
| Number Of Outputs: | 13 | Voltage - Supply: | 3V ~ 3.6V |
Product Description
DS90UB928QSQX/NOPB General Purpose Relays Ic Deserializer Lvds 48wqfn
2.975Gbps Deserializer 1 Input 13 Output 48-WQFN (7x7)
Specifications of DS90UB928QSQX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Serializers, Deserializers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Deserializer |
| Data Rate | 2.975Gbps |
| Input Type | FPD-Link III, LVDS |
| Output Type | LVDS |
| Number of Inputs | 1 |
| Number of Outputs | 13 |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-WQFN (7x7) |
| Base Product Number | DS90UB928 |
Features of DS90UB928QSQX/NOPB
• Qualified for Automotive Applications AEC-Q100
– Device Temperature Grade 2: -40°C to +105°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level 8 kV
– Device CDM ESD Classification Level C6
• Bidirectional Control Channel Interface with I 2C Compatible Serial Control Bus
• Low EMI FPD-Link Video Output
• Supports High Definition (720p) Digital Video
• RGB888 + VS, HS, DE and I2S Audio Supported
• 5 MHz to 85 MHz Pixel Clock Support
• Up to 4 I2S Digital Audio Outputs for Surround Sound Applications
• 4 Bidirectional GPIO Channels with 2 Dedicated Pins
• Single 3.3 V supply with 1.8 V or 3.3 V Compatible LVCMOS I/O Interface
• AC-Coupled STP Interconnect Up to 10 Meters
• DC-Balanced and Scrambled Data with Embedded Clock
• Adaptive Cable Equalization
• Image Enhancement (White Balance Dithering) and Internal Pattern Generation
• Backward Compatible Modes
Applications of DS90UB928QSQX/NOPB
• Automotive Displays for Navigation
• Rear Seat Entertainment Systems
• Automotive Driver Assistance
• Automotive Megapixel Camera Systems
Environmental & Export Classifications of DS90UB928QSQX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
