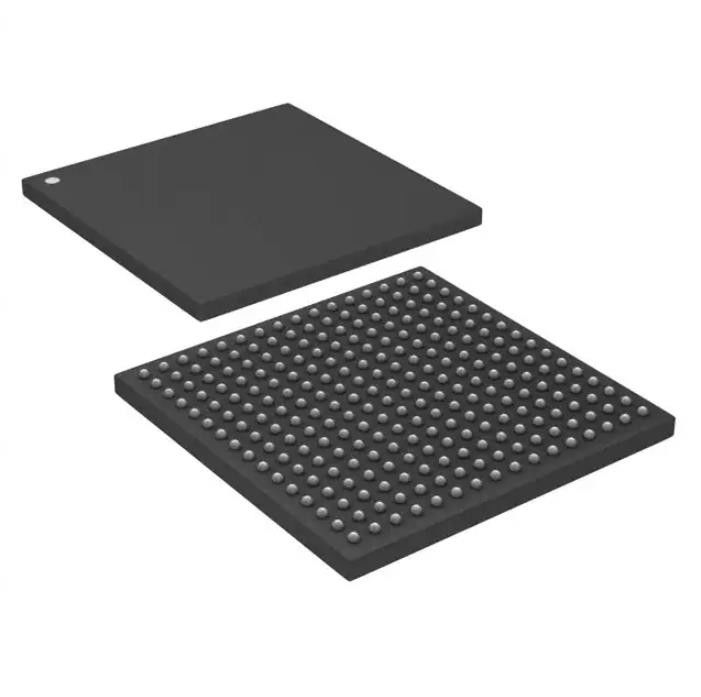

DS26518GN+ General Purpose Relays Ic Transceiver Full 8/8 256csbga
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS26518GN+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply: | 3.135V ~ 3.465V | Operating Temperature: | -40°C ~ 85°C |
|---|---|---|---|
| Mounting Type: | Surface Mount | Package / Case: | 256-BGA |
| Supplier Device Package: | 256-CSBGA (17x17) | Base Product Number: | DS26518 |
| Package: | Tray | Product Status: | Active |
Product Description
8/8 Transceiver Full T1/E1/J1 256-CSBGA (17x17)
Specifications of DS26518GN+
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tray |
| Product Status | Active |
| Type | Transceiver |
| Protocol | T1/E1/J1 |
| Number of Drivers/Receivers | 8/8 |
| Duplex | Full |
| Data Rate | - |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 256-BGA |
| Supplier Device Package | 256-CSBGA (17x17) |
| Base Product Number | DS26518 |
Features of DS26518GN+
• Eight Complete T1, E1, or J1 Long-Haul/ Short-Haul Transceivers (LIU Plus Framer)
• Independent T1, E1, or J1 Selections for Each Transceiver
• Fully Internal Impedance Match, No External Resistor
• Software-Selectable Transmit- and ReceiveSide Termination for 100Ω T1 Twisted Pair,110Ω J1 Twisted Pair, 120Ω E1 Twisted Pair, and 75Ω E1 Coaxial Applications
• Hitless Protection Switching
• Crystal-Less Jitter Attenuators Can Be Selected for Transmit or Receive Path; Jitter Attenuator Meets ETS CTR 12/13, ITU-T G.736, G.742,G.823, and AT&T Pub 62411
• External Master Clock Can Be Multiple of
2.048MHz or 1.544MHz for T1/J1 or E1 Operation; This Clock is Internally Adapted for T1 or E1 Usage in the Host Mode
• Receive-Signal Level Indication from -2.5dB to -36dB in T1 Mode and -2.5dB to -44dB in E1 Mode in Approximate 2.5dB Increments
• Transmit Open- and Short-Circuit Detection
• LIU LOS in Accordance with G.775, ETS 300233, and T1.231
• Transmit Synchronizer
• Flexible Signaling Extraction and InsertionUsing Either the System Interface orMicroprocessor Port
• Alarm Detection and Insertion
• T1 Framing Formats of D4, SLC-96, and ESF
• J1 Support
• E1 G.704 and CRC-4 Multiframe
• T1-to-E1 Conversion
Applications of DS26518GN+
Environmental & Export Classifications of DS26518GN+
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
